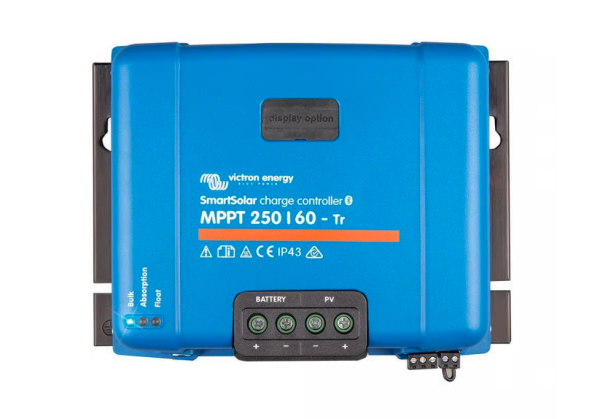

The Smartsolar MPPT 250/60-Tr from Victron Energy is part of the latest generation of smart solar controllers from the premium manufacturer. The controller processes a whopping 60A of solar power and can work flexibly with 12/24/36/48 V batteries with a maximum PV input voltage of 250V DC. Ultra-fast power tracking and automatic power point detection in the event of partial shading are just two of the many highlights of this new device class. In addition, this model is capable of parallel operation with other controllers of the same type.
In comparison to the 150 series, the 250 series can process a maximum PV input voltage of 250V. This is also one of the reasons why the 250 series solar controller family has been able to increase efficiency by a further 1 percent to a total of 99%, thus setting new industry-wide standards. This value is currently the best of all solar charge controllers that we know of. Compared to the BlueSolar family, the Bluetooth module is already integrated in the controller of the 250 Smartsolar series, which makes the smart dongle superfluous for this device if you want to analyze and configure the controller via Bluetooth using a smartphone or tablet. Another new feature is the optional LCD display, which can simply be attached to the SmartSolar 250/60-tr as required. The display then provides all the important information about the controller. If required, the MPPT WireBox-L Tr from Victron Energy is the ideal addition to your SmartSolar charge controller. It securely covers the cable entries and connection terminals of the controller, protecting them from external influences and contact.
Key product features
max. PV power: 12 V 860 W / 24 V 1720 W / 48 V 3440 W
max. Nominal charging current 60A, 250V maximum PV open-circuit voltage
The latest generation of ultra-fast MPP tracker ensures the best possible yield even in overcast conditions
Automatic detection of the MPP voltage in the event of partial shading ensures a further improvement in yield compared to a "simple" MPPT charger;over "simple" MPPT charge controllers
Fixed integrated Bluetooth module for app-supported analysis and configuration of the controller (via free Victron app on compatible devices)
Optional LCD display available
Integrated VE.Direct data communication port for connection for communication with additional devices such as the GX Color Control Panel or a Smart BMV battery monitor
pioneering efficiency of 99%
parallel operation with other 250/85 controllers possible
;adjustable constant charge voltage
adjustable float charge voltage
suitable for all AGM, GEL, lead-acid calcium-calcium and lithium batteries
fully programmable charging algorithms that can later be manually activated and switched via a switch on the housing
;use
integrated protection against battery polarity reversal
multi-stage and adaptive charging algorithm
remote switching on and off possible via 2-pin plug
protection class IP 43 for the electronic components and protection class IP 22 for the connection area of the controller
;for the connection area of the controller
integrated temperature sensor balances maintenance and constant charging voltage according to temperature
day/night time control and light dimming options
optionally also available as a version with MC4 connections
3kg
200x250x95
smart configuration and analysis via Victron Connect App
Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected thanks to the permanently integrated Bluetooth module and the free Victron Connect APP. The app can then be used to configure many important functions of the SmartSolar controller. Of course, it also provides all important parameters such as the current solar yield in real time.
automatic detection of the Maximum Power Point in the event of partial shading
In the event of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Conventional MPPTs tend to adjust to a local MPP. However, this may not be the optimum MPP. The innovative algorithm of the SmartSolar controller will always maximize the energy yield by adjusting to the optimal MPP.
New generation high-speed MPP tracker
Especially in overcast conditions, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield by up to 30% compared to PWM charging controllers and by up to 10% compared to slower MPPT controllers.
Optional LCD display available for retrofitting
If you prefer to operate and configure the Smartsolar MPPT 250/60-tr directly, you can retrofit the Smartsolar Control SCC900600010 display. The display makes it easy to configure the controller via key input and also provides all important performance data at a glance.
Comprehensive electronic protection
Protection against reverse polarity battery connection
PV reverse current blocking
Protection against overheating of the device
Protection against short circuits
Protection against reverse polarity PV connection
VE.Direct data communication port
VE.Direct in text mode transmits all important parameters to other devices linked to the charge controller every second and thus offers the option of communicating with additional devices such as the GX Color Control system panel. The VE.Direct connection is intended for products where full Canbus integration (VE-Direct) would be too expensive. You can find more information about VE.Direct in our Victron Energy brand store.
Scope of delivery
1x Victron SCC125060210 SmartSolar MPPT 250/60-Tr 12V 24V 48V 60A charge controller
1x operating instructions
