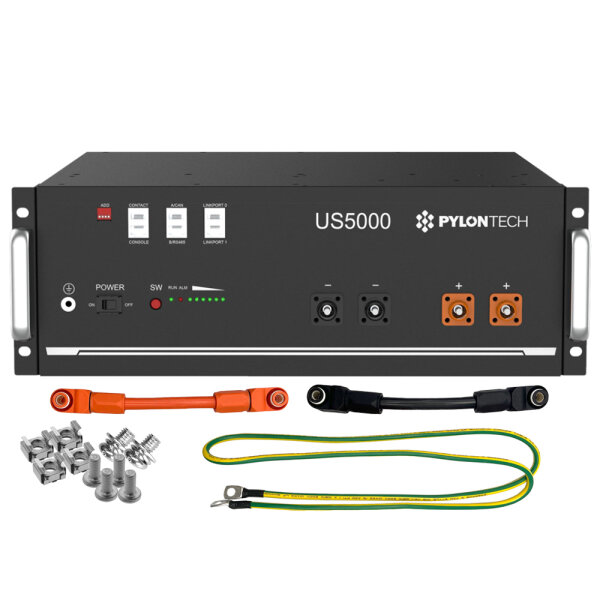

Pylontech US5000 4,8kWh LiFePO4 Batterie

SKU: US5000C
GTIN: 4260737982185
Manufacturers: Pylontech

704,90 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Ships in 2 - 5 business days (Mon-Fri)

Arrange a consultation now

OR ORDER DIRECTLY

The Pylontech US5000 is a lithium storage system of the latest generation. The storage tank has been specially developed to fully meet the high demands placed on a solar storage tank today. Maximum safety and a long service life are guaranteed even with regular deep discharges thanks to the latest technology.

The latest battery from the market-leading manufacturer, which now has 4.8 kWh per module, once again has a battery management system (BMS) built into each module and therefore offers a high level of safety. Internally, the individual cells are monitored and protected against overvoltage, overtemperature, deep discharge, etc. in a balanced manner. The battery is compatible and certified with many available inverters.

Properties

Extremely cycle-resistant - over 6000 cycles at 95% DoD

Lifetime üover 15 years

7 year manufacturer's warranty

Absolutely intrinsically safe lithium technology

Compatible with many available inverters (e.g. Victron, SMA, Schneider, Goodwe, Sofar)

Automatic address setting when connected in multi-groups

High charging and discharging power possible

Integrated BMS

Very high storage density - low weight and compact design

Easy installation thanks to modular design

Absolutely maintenance-free and durable

Built-in soft-start function, which is able to reduce the power surge when the inverter is started from the battery

Dual active protection at BMS level

Supports WakeUp through 5-12V signal from the RJ45 port

Precharge function to protect the ESS system from overvoltage function

Battery management system in each module

The battery management system integrated in each module protects each installed battery cell from harmful influences over the entire service life of the module and effectively prevents premature failure.

Modular design

The system has a modular design and can be configured precisely to the required storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and an integrated BMS.

High cycle life

The extremely long cycle life of the LiFePo4 cells used make Pylontech US5000 modules the ideal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, the Pylontech storage system offers several advantages over typical lead batteries and other lithium technologies.

Technical data

Technology

Lithium iron phosphate (LiFePo4)

Nominal voltage

48V

Nominal capacity

100 Ah / 4.8 kWh

Usable capacity (95% DOD)

95 Ah / 4.56 kWh

Unloading area

45.5 ... 53.2 V

Charging voltage range

52.5 ... 53.2 V

Recommended charging / discharging current

80 A

Maximum charging / discharging current

100 A / Peak: 200 A for 15 s.

Communication

RS485, CAN

Weight in kg

39.7

Dimensions

442 x 420 x 161 mm

Temperature range during charging

+0... +50°C

Temperature range during discharge

-10... 50°C

Lifetime

Over 15 years at 25°C

Cycle life

6000 @ 25°C

BMS / ¨berwachung

Integrated BMS in every module

Certification

TüV / CE / UN38.3

Scope of delivery:

1x Pylontech US5000 LiFePO4 4.8 kWh

1x cable set parallel connection incl. earthing

1x RJ45 data cable

1x mounting screws

1x operating instructions

Shipping weight:

39,00 kg
