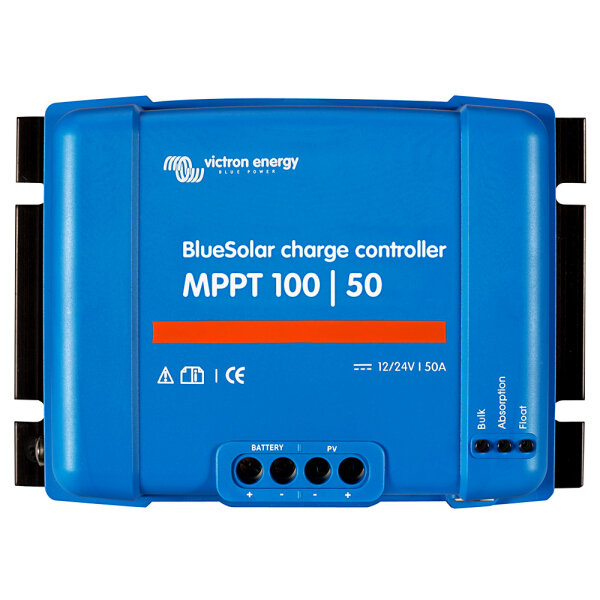

Victron BlueSolar MPPT 100/50 - no bluetooth

SKU: SCC020050200
GTIN: 8719076025566
Manufacturers: Victron Energy

121,08 €

Incl. 0% VAT for orders according to §12 Abs. 3 UStG, only for DE

144,09 €

incl. 19% VAT

plus (Applies to both prices)

Manufacturers recommended retail price: 213,01 €

(Save 32.36%, i.e. 68,92 €)

Choose tax zone / country of delivery

Available immediately
Ships in 2 - 5 business days (Mon-Fri)

Arrange a consultation now

OR ORDER DIRECTLY

The Victron MPPT 100/50 -without Bluetooth- belongs to the large family of BlueSolar MPPT charge controllers and, like its larger siblings, it already offers ultra-fast power tracking and can therefore increase the yield of your solar system. Greater charging and PV power and more protection compared to the smaller models. The Blue Solar MPPT 100/50 offers overheating protection with switch-off function and automatic restart after reaching a normal operating temperature. In addition, there is a PV reverse current protection which is only available from this device onwards in the Blue MPPT family.

High-speed MPP tracker of the latest generation
In particular in cloudy weather, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield by up to 30% compared to PWM charging controllers and by up to 10% compared to slower MPPT controllers.In addition, the 100/50 features several other innovative technologies such as the VE.Direct communication port.

Programming: Real-time data and history display
Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected to the Bluetooth Smart Dongles and the MPPT app or the GX Color Control via VE.Direct, for example. Please note that Bluetooth Smart Dongles and GX Color Control are separate items that are not included in the scope of delivery of the charge controller but can be purchased from us as an option.

Product features of the BlueSolar 100/50 50A 12V 24V MPPT
- ultrafast MPP tracker of the latest generation ensures the best possible yield even in overcast conditions
- automatic detection of the MPP voltage in partial shade ensures a further improvement in yield compared to other MPPT charge controllers
- integrated VE.Direct data communication port for connection for communication with additional devices such as Bluetooth Smart Dongle or the GX Color Control Panel
- high maximum efficiency of 98%
- fully programmable charging algorithms that can later be activated manually via a switch on the housing;use
- nominal charging current 50A, 100V maximum PV open circuit voltage
- 700W maximum PV power for 12V, 1400W for 24V systems
- integrated protection against battery polarity reversal
- multi-stage and adaptive charging algorithm
- integrated temperature sensor balances maintenance and constant charging voltage according to temperature
- day/night time control and light dimming option
- day/night time control and light dimming option
- integrated temperature sensor balances maintenance and constant charging voltage according to temperature;mming option
- 130x186x70

VE.Direct data communication port
VE.Direct in text mode transmits all important parameters to other devices connected to the charge controller every second and thus offers the possibility of communication with additional devices such as the Bluetooth Smart Dongle or the GX Color Control Panel from Victron. The VE.Direct connection is intended for products where full Canbus integration (VE-Direct) would be too expensive.

Scope of delivery
1x Victron SCC020050200 BlueSolar MPPT 100/50 12V 24V 50A charge controller
Operating instructions

Shipping weight:

1,53 kg
Item weight:

1,40 kg
