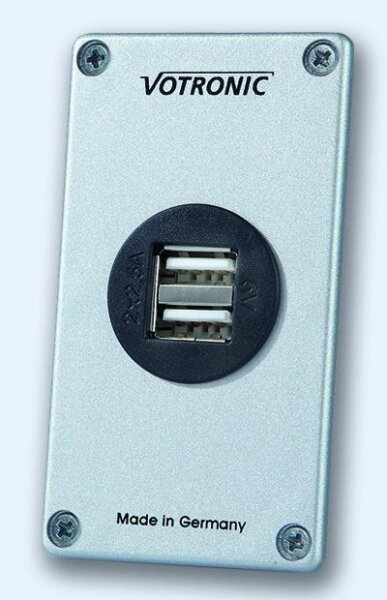

VOTRONIC USB Charger Panel S

SKU: 1297
GTIN: 4250683614537
Manufacturers: Votronic

Due to illness, our customer service hotline is currently unavailable. All orders and inquiries will be processed as quickly as usual.

47,90 €

incl. 19% VAT , plus

Net Price: 40,25 €

Choose tax zone / country of delivery

Available immediately
Shipping in 1-3 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

Switch and safety panels for the on-board electrical system

Motorhome

Off -road

boat

blue light

Switch the electrical devices and secure circuits, put together individually according to their own wishes and mark them clean. These are the characteristics of these control and switching devices. Equipped with fuse machines, the annoying search for the right replacement protection has come to an end. The operational readiness is restored at the push of a button. Panels with a uniform height of 85 mm are offered for the Votronic module system that can be used as individual devices or in combination. The diverse application options allow the user to put together a complete information and operating center.

Security panel 4 s

Safety machines 6a, 8a, 10a, pre -wired to the group
1 safety machine 12a, individually damable
Suitable for 12V and 24V
Connection via flat connector
Optical trigger control
Other base on request

Front disk aperture S

Blind cover for already planned panels or to install your own components

Switch panel 4 s

4 switch on/off, 8a each resilient, with a control LED
Connection via screw terminals
Execution 12V or 24V

Switch panel 2x 16a s

2 single switch 2xum with flat plug connection
Resilience: 2x 8a / 1x 16a
Suitable for 12V or 24V

Main switch panel 20a S

Robust main switch with 20A overcurrent switch (automatic safety machine)
Thermally triggering, briefly overloadable for a short time
Triggering with more than 20a permanent current with the reversal of the switching rocker
Suitable for 12V and 24V

USB loader panel s

USB double-carer
5V / 2.5A
Suitable for 12V and 24V

Switch panel 16a s

Individual switch 2xum with flat plug connection
Resilience: max. 2x 8a or 1x 16a
Suitable for 12V or 24V

STCKOSE PANEL S

For 12V consumers with DIN connector (ISO 4165), resilience 8a
Connection via flat connector

Device type	Art.- No.	Art.- No. marine	Operating voltage [V]	Dimensions (B x H X T) [mm]	Installation depth approx. [mm]	execution
Security panel 4 s	1285	-	12 and 24	47 x 85 x 75	70	A
Switch panel 4 s	1287	11287	12	47 x 85 x 25	20	B
Switch panel 4 / 24v s	6287	16287	24	47 x 85 x 25	20	B
Switch panel 16a s	1289	-	12 and 24	47 x 85 x 45	40	C
Switch panel 2x16a s	1291	-	12 and 24	47 x 85 x 45	40	D
STCKOSE PANEL S	1293	-	12 and 24	47 x 85 x 65	60	E
Main switch panel 20a S	1295	-	12 and 24	47 x 85 x 75	70	F
USB loader panel s	1297	-	12 and 24	47 x 85 x 42	38	G
Front disk aperture S	2019	-	-	47 x 85 x 3	-	H
Scope of delivery:	Flat plug, fastening screws, drilling template

An internationally understandable lettering sheet is available for the clean labeling of switches and fuses. This Pictogram film is transparent, self -adhesive and suitable for the vottronic front platform design.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

Fresh water tank
Sewage tank
Fecal tank
Fuel tank
Tank inside
Tank outside
Tank 1
Tank 2
Tank in general
Tank heating
On-board battery
Start battery
Solar battery
Battery 1
Battery 2
lighting
Lighting kitchen
Lighting medical space
Lighting outer door
Lighting storage space

21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

Refrigerator
Heating
boiler
pump
fan
fan
radio
TV
Video recorder
Satellite receiver
Stove/microwave
Electrical level
Electrical awning
12V socket
24V socket
Alarm in general
Carbon monoxide alarm
Gas alarm
Ice-ex
Headlight

41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

Power supply unit
Voltage converter
Attention network voltage
Network 230V
12V equal voltage
24V equal voltage
A
A
Out of
Out of
On
Off
phone
fax
reserve
Load
Distribution 1
Distribution 2
Addition (general)
Main (general)

61
62
63
64
65
66
67
68
69
70

Fuse 4a
Fuse 5a
Security 6a
Fuse 7a
Fuse 8a
Fuse 8a
Security 10a
Security 10a
Fuse 12a
Fuse 16a

Shipping weight:

0,03 kg
Item weight:

0,02 kg
