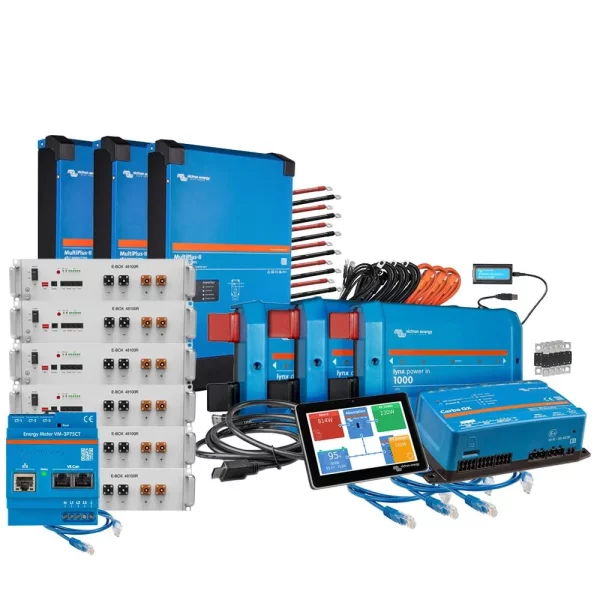

Offgridtec backup kit retrofit kit with Pytes 48100R-TE+ battery Victron MultiPlus-II 48/5000 3-phase 20.5 kWh, with electricity meter

SKU: 4-01-019540-001
GTIN: 8719076047599
Manufacturers: Offgridtec

Speicherkapazität
Stromzähler

5.219,00 €

Incl. 0% VAT for orders according to §12 Abs. 3 UStG, only for DE

6.210,61 €

incl. 19% VAT

plus (Applies to both prices)

Choose tax zone / country of delivery

Available, will be reordered
Ships in 7 - 10 business days (Mon-Fri)

Arrange a consultation now

OR ORDER DIRECTLY

Offgridtec backup kit replacement set 20.5 kWh or 30.7 kWh with Pytes 48100R-C battery Victron Multiplus II 48/5000 3-phase, with or without power meter

The 3-phase backup systems from Offgridtec are ideal for emergency power supply or for expanding an existing solar system. The systems include lithium-ion batteries from Pytes, the matching MultiPlus-II inverters and a Cerbo GX MK2 from Victron Energyfor system monitoring. This allows you to secure your energy supply even in the event of a power failure.

With the batteries from Pytes, you have a storage capacity of 20.5 kWh to 30.7 kWh, depending on your choice, to use your energy efficiently and remain self-sufficient for longer if required. Thanks to the extensive capacity, the system is perfect for large solar systems. The UPS function of the MultiPlus ensures that the supply to the connected consumers is maintained even in the event of a grid fault. The switchover takes place so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices can be guaranteed.

Application areas:
Emergency power supply
Perfectly suited for large solar systems
Independent solar systems (off-grid systems)
Retrofitting existing PV systems
Grid-connected power supply
UPS systems

Parts list:
Pytes E-Box-48100R-C 100Ah 51V LiFePO4 battery (depending on selection 4 or 6x)
3x Victron MultiPlus-II 48/5000/70-50 230V
1x Victron Cerbo GX MK2 Communication center Systemüberwachung
1x Victron GX Touch 50 display panel für Cerbo GX
1x Victron Energy Lynx Power In (M8)
1x Victron Lynx Distributor (M8)
2x 0,9m Victron RJ45 UTP cable
1x 3m Victron RJ45 UTP cable
1x Victron MK3-USB VE.Bus to USB Interface
1x Pytes Data Cable Battery to Victron Inverter 3,5m MultiPlus 2
Pytes Battery Inverter Power Cable 2m, positive(depending on selection 2-3x)
Pytes battery inverter power cable 2m, negative (depending on selection 2-3x)
2x Offgridtec set of 5 MEGA fuse 100A 70V füfor 48V systems
3x Offgridtec® 1m battery cable 50mm² M8 on both sides Öhler
1x Victron VM-3P75CT Energy Meter
1x 5m Victron Energy RJ45 UTP cable

Extended use of your backup system
The backup kit can be supplied with or without Victron power meters and cables. However, an energy meter is essential for setting up an energy storage system.

With this energy meter, you can carry out a grid-parallel installation and then monitor your energy consumption and energy costs. Thanks to phase compensation, it is also possible to use the 3-phase meter in 1-phase systems. This enables the seamless integration of decentralized energy sources and consumers into the existing power grid.

In order for an ESS to be taken into account in a pre-configuration, the meter must be purchased in advance or for the system!

The storage solution - Pytes E-Box-481000R-C:
The Pytes E-BOX 48100R-C is a state-of-the-art LFP battery with a capacity of 100 Ah. It impresses with its high level of safety, sophisticated design and impressive performance. This compact battery is easy to install, requires no maintenance and can be used as a basic component of an energy storage system by connecting it in parallel.

Technical data:
Battery chemistry: Lithium iron phosphate (LFP)
Nominal voltage: 51.2 V
Voltage range: 47.5-57.6 V
Nominal power: 100 Ah
Nominal energy: 5.12 kWh
Max. Charging current: 50 A
Max. Discharge: 50 A
Charging temperature: 0~50°C
Discharging temperature: -10~50°C
Efficiency: ≥95%
Communication protocol: RS-232, RS-485, CAN
Cycle life: >6000 cycles at 90% DoD
Dimensions: 440 x 620 x 117 mm
Weight: 51 kg

The electronic core - the Victron Multiplus-II device combination
The Multiplus-II is a high-end device combination from Victron Energy, which combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and PowerAssist functions to 100 A and expands the potential range of use to ESS applications.

5000 W power with non-linear load
4000 W continuous load and 9000 W peak power
for 48V battery voltage
50A transfer switch
70A battery charger
Output voltage: 230 VAC, frequency: 50 Hz
max. efficiency: 95%
Protection class: IP22

Configuration:
The MultiPlus-II is delivered unconfigured as standard. You can find the configuration instructions for the system here in the download area. If you would like us to pre-configure the system, we can do this for you for an additional charge. To do this, add the item "Offgridtec pre-configuration" to the shopping cart during the ordering process. In this case, shipping may take 3-5 working days longer until the configuration has been completed.

System monitoring with the Victron Cerbo GX MK2 and GX Toch display
With the Cerbo GX MK2 communication center, you can easily control and monitor your system. The flexible connection options maximize your system performance. Thanks to the Cerbo GX MK2, you can control your system from anywhere. With the GX Touch 50 display, you always have all the parameters of your system in view and can make changes quickly and easily.

Safety note: Only have this complete system installed and commissioned by a qualified electrician.
