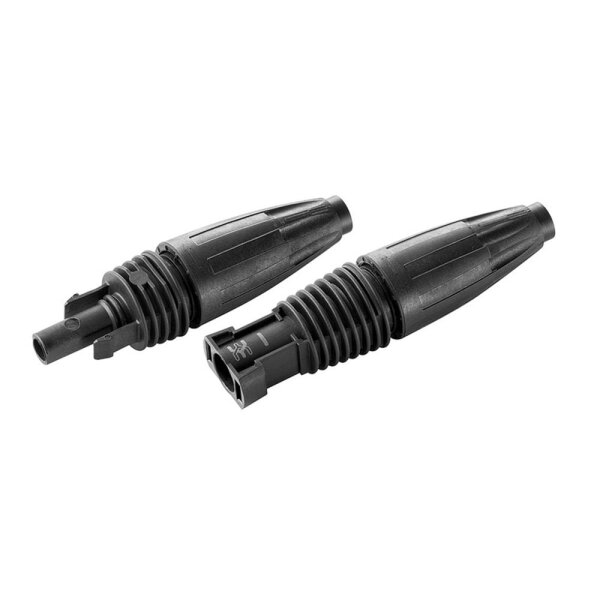

Weidmüller PV Stick Set

SKU: 1422030000
GTIN: 4050118225723
Manufacturers: Weidmüller

6,34 €

Incl. 0% VAT for orders according to §12 Abs. 3 UStG, only for DE

7,54 €

incl. 19% VAT

plus (Applies to both prices)

Choose tax zone / country of delivery

Available immediately
Ships in 2 - 5 business days (Mon-Fri)

Arrange a consultation now

OR ORDER DIRECTLY

The PV Stick field connector from Weidmüller (MPN: 1422030000) is a powerful and reliable connector for photovoltaic applications. With its push-in connection—plug, turn, power!—it enables a crimp-free, fast, and secure connection of solar panels, inverters, and other components in PV systems. The PV Stick is compact and easy to install, saving time and money.

Electrical properties

Push-in technology
Protection class: II
Protection rating IP65/IP2x
Application information

Insert the stripped photovoltaic cable (strip 15-16.5 mm) without ferrules
An audible click indicates that the connection has been made securely
Tighten the screw cap with a few turns
"Snap in" ensures that the plugs are securely locked in place
Technical data

Continuous operating temperature: -40°C to +85°C
Rated voltage: 1500 V/DC
Rated current: 30A
Degree of protection when plugged in: IP65
Degree of protection when open: IP2x
Protection class: II
Conductor cross-section: 4 mm²–6 mm
PV conductor according to EN 50618:2014
Cable diameter: 6.1 mm-6.2 mm
overvoltage category: III/3
Air & creepage distance according to DIN EN 60664-1:2007
contact resistance: IEC 62852:2014
Approval: IEC 62852:2014
Rated impulse voltage: 16 kV
Connection technology: PUSH IN (spring clamp connection)
Installation temperature: +10°C to +40°C
Scope of delivery:
