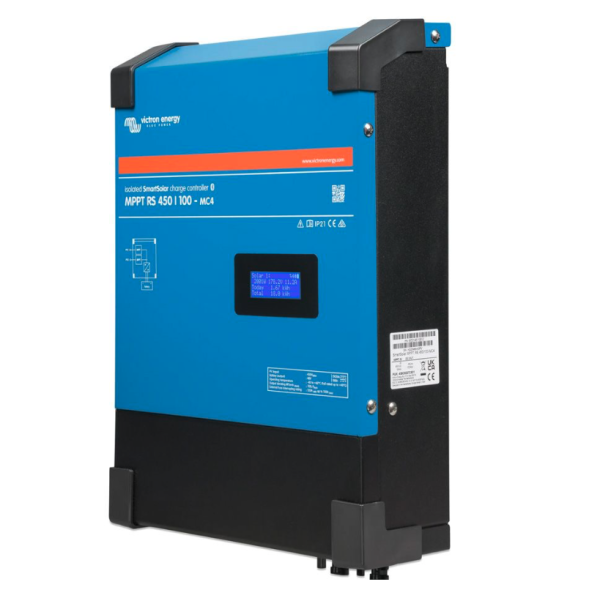

Victron SmartSolar MPPT RS 450/100 MC4 48V charge controller

SKU: SCC145110512
GTIN: 8719076062738
Manufacturers: Victron Energy

729,00 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

(Save 48.17%, i.e. 677,58 €)

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Ready to ship in 1-4 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

The MPPT RS SmartSolar from Victron Energy is a 48V solar charge controller with a PV input voltage of up to 450 VDC and an output current of 100A. It is used in grid-tied and off-grid solar applications where maximum battery charging power is required.

Properties

With ultra-fast Maximum Power Point Tracking (MPPT)
Multiple independent MPPT tracking inputs
Isolated PV connections for additional safety
Large MPPT voltage range
Lightweight, efficient and quiet
Integrated display and Bluetooth communication
PV insulation resistance monitoring for safety at higher voltages
VE.Can and VE.Direct connection
E/A connections

Configure and monitor with VictronConnect app or in the VRM portal

The integrated Bluetooth Smart connection enables quick monitoring or configuration of the settings via the app. The integrated 30-day history shows the individual performance of each MPPT tracker. The app enables the display of e.g. battery voltage and current, PV voltage and current, historical data and trends. The VictronConnect app is available for Android, iOS, Windows and macOS X.
When the solar controller is connected to a GX device and the internet, the Victron Remote Management Portal (VRM) provides access to the full performance of your SmartSolar RS charge controllers.

Additional units connected in series

The SmartSolar RS charge controller is equipped with VE.Can bus connections. This enables communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply "daisy-chained" together with an RJ45 cable. When connected, all individual charge controllers synchronize their charge levels. You can also send your data to a GX device (such as the CerboGX) for monitoring via the same cable.

Technical data

Battery voltage: 48V
Nominal charging current: 100A
Max. Charging power: 5.8kW at 57.6V
Charging algorithm: multi-stage adaptive (customizable)
Max. DC-PV voltage: 450V
MPPT operating voltage range: 80-450V
Number of trackers: 2
Max. PV operating input current: 18A per tracker
Protection class: IP21
Dimensions: 440 x 313 x 126 mm
Weight: 7.9 kg

Scope of delivery:

1x Victron SmartSolar MPPT RS 450/100 MC4 48V charge controller

Data sheet

System voltage	48V
EAN	8719076049319
Manufacturer part number	SCC145110410
Solar module voltagemax153	450 V
Weight	7.9 kg
Dimensions (LxWxH)	440 x 313 x 126 mm
Protection class IP	IP21
Solar module current max154	18A
max. charging current	100 A
Manufacturer	Victron Energy

Shipping weight:

8,90 kg
Item weight:

8,00 kg
