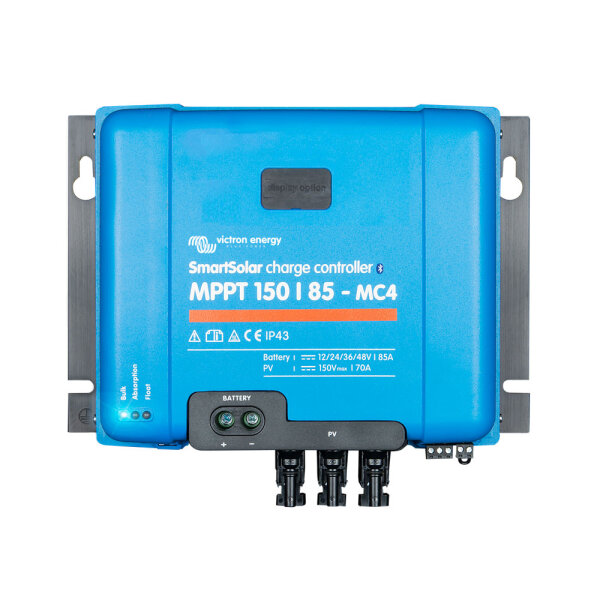

The Smartsolar MPPT 150/85-MC4 VE.Can from Victron Energy is part of the latest generation of smart solar controllers from the Dutch premium manufacturer. Ultra-fast power tracking and automatic power point detection in the event of partial shading are just two of the many highlights of this new device class. The devices in classes 150/45 to 150/100 are also available as versions with screw terminals on the solar side of the charge controller. In addition, this model is capable of parallel operation with other controllers of the same type.
In comparison to the BlueSolar series, the Bluetooth module is already permanently integrated in the controller in the Smartsolar family, making the smart dongle superfluous in this device. Another new feature is the optional LCD display, which can simply be attached to the SmartSolar 150/85-MC4 as required. The display then provides all the important information about the controller. If required, the MPPT WireBox-XL MC4 from Victron Energy is the ideal addition to your SmartSolar charge controller. It securely covers the cable entries and connection terminals of the controller, protecting them from external influences and contact.
Key product features
The latest generation of ultra-fast MPPT tracker ensures the best possible yield even in overcast conditions
Automatic detection of the MPP voltage in the event of partial shading ensures a further improvement in yield compared to "simple" MPPT chargers;over "simple" MPPT charge controllers
fixed integrated Bluetooth module for app-supported analysis and configuration of the controller (via free Victron app on compatible devices)
optional LCD display available
VE-Can, the solution for multiple controllers
integrated VE.Direct data communication port for connection for communication with additional devices such as the GX Color Control Panel or a Smart BMV battery monitor
High maximum efficiency of 98%
Parallel operation with other 150/85 controllers possible
Adjustable constant charge voltage
Adjustable float charge voltage
Suitable for all AGM, GEL, GEL, GEL and GEL batteries;for all AGM, GEL, lead-acid calcium-calcium and lithium batteries
Fully programmable charging algorithms that are later manually activated and switched via a switch on the housing
Nominal charging current 85A, 150V maximum PV open circuit voltage
Maximum PV power: 12V 1200W / 24V 2400W / 48V 4900W
integrated protection against battery polarity reversal
multi-stage and adaptive charging algorithm
remote switching on and off possible via 2-pin plug
protection class IP 43 for the electronic components and protection class IP 22 for the connection area of the controller
;for the connection area of the controller
Integrated temperature sensor balances maintenance and constant charging voltage according to temperature
Day/night time control and light dimming option
216x295x103
4.5kg
smart data communication via VE.Direct and Bluetooth module
Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected thanks to the permanently integrated Bluetooth module and the free Victron Connect APP. The app can then be used to configure many important functions of the SmartSolar controller. Of course, it also provides all important parameters such as the current solar yield in real time.
VE.Can: the solution for multiple controllers
With VE.Can, up to 25 devices can be synchronized, with Bluetooth up to 10 devices
Automatic detection of the maximum power point
In the event of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Conventional MPPTs tend to adjust to a local MPP. However, this may not be the optimum MPP. The innovative algorithm of the SmartSolar device will always maximize the energy yield by adjusting to the optimal MPP.
High-speed MPPT tracker
Especially in overcast conditions, when light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Comprehensive electronic protection
Protection against reverse polarity battery connection
PV reverse current blocking
Protection against overheating of the device
Protection against short circuits
Protection against reverse polarity PV connection
VE.Direct data communication port
VE.Direct in text mode transmits all important parameters to other devices connected to the charge controller every second, thus offering the option of communicating with additional GX Color Control system panels. The VE.Direct connection is intended for products where full Canbus integration (VE-Direct) would be too expensive. You can find more information about VE.Direct in our Victron Energy brand store.
Scope of delivery
1x Victron SmartSolar MPPT 150/85-MC4 VE.Can 12V 24V 36V 48V 85A charge controller
Operating instructions
