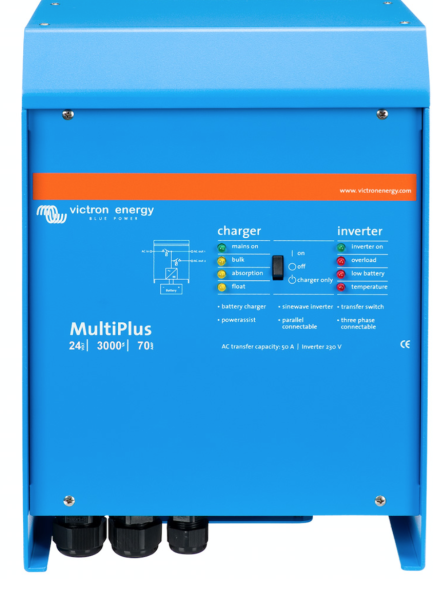

TheMultiplus 24/3000/70-16 from Victron Energy is a device combination of 24V 2400W sinus inverter and battery charger. The permanently integrated battery charger makes a considerable 70a which can also be fully charged even if the land/network current is available. The 24V Sinus voltage converter built into the multiplus converted its electricity from the battery into 230V AC. Thanks to the real sine wave, the electricity quality is also perfect for sensitive electronic devices. In addition to the two integrated device types, a lightning -fast transfer switch is also installed with which numerous network -coupled solutions can also be implemented. In addition to the Ve.Bus Port, a COM port is also available for system integration, which almost enables unlimited networking of the Multiplus.
comprehensive and flexible can be used
Since he also has a lightning -fast 16A transfer switch in addition to inverning people and charger, it is an ideal inverter for the areas of motorhome, boat or yacht and the network -coupled area of the uninterrupted power supply in the case of network fluctuations or power failures. Also for use in network -coupled self -consumption systems that only draw electricity from the supplier if the battery current is no longer sufficient or as a UPS solution in which the multiplus stipulate when the electricity suddenly fails from the network operator and thus ensure an uninterrupted power supply.
Essential performance features
- 2400W continuous output and 6000W peak output, for 24V battery voltage
- Device combination made of inverter with a transfer switch and 70a battery charger
- delivers the purest 230V sine voltage and a clean 50Hz frequency
- Ve.Bus communication sport ensures extensive possibilities of networking, system integration, configuration and control of the multiplus devices from Victron.
-support the three-phase operation (3 equal units of the same model required)
- Multiplus devices are parallel -circuitable, up to 6 devices can be connected in parallel and the system performance can therefore be significantly increased if necessary
- 2 AC exits from MultiPlus 3000 and larger. For example, devices that should only run can be connected to the second output if network current is available
- From the Multiplus 3000 a COM port in addition to the VE.Bus port, so that there are no longer any limits to the system integration
- PowerControl function enables working with limited generator performance as well as limited land or network electricity
- Power assist function enables “increase in performance” by generators and land connection support if necessary
- Can be used as a UPS solution for interruption -free power supply, thanks to the integrated transfer switch with 16A
- For network -coupled self -consumption systems that can only be used by the network operator if the battery capacity is no longer sufficient or other programmable events have taken place
- Compatible with numerous Victron tax and display panels
- Three phase operation with identical multiplus interim judges possible
solid performance expansion possible
Apart from the parallel connection, three units of the same model can also be configured for a three-phase output. However, this is not enough: up to six sets with three units can be switched in parallel to achieve a huge 75 kW / 90 kva inverter and over 2,000 A charging capacity (calculated with the 5000 version)
PowerControl - Working with limited generator performance, limited land or network electricity
The Multiplus is a very powerful battery charger. Therefore, it takes up a lot of electricity from the generator or the land power supply (almost 10a per 5kva multi at 230 VAC). With the remote control panel Multi Control, the maximum network or generator current can be set. The Multiplus then takes into account other connected alternating current consumers and only uses the electricity for charging, which is still “left”. This prevents the generator or land power connection from being overloaded.
Power assist - “increase in performance” by generators and country connection support
With this function, the PowerControl principle receives a new dimension. It enables the multiplus to support too weak alternative sources. Load tips often only occur for a limited period of time. In such a case, the Multiplus ensures that too weak land current or generator output is immediately compensated for by energy from the battery.
Backup system: Alternating current even in the event of a network failure
The Multiplus can be used in both non-linked and network-coupled PV systems as well as in other alternative energy systems. Software is available for recognizing a network failure.
Simple system configuration
If settings have to be changed to a single device, this can be done within a few minutes using a DIP switch setting process.
Parallel switched and three-phase systems can be configured with the Ve.Bus Quick Configuret- und Ve.Bus System Configurator software.
Monitoring options and controls on site
Several options are available: battery teacher, Multi Control Paneel, Ve.net Blue Power Panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), Laptop or Computer (USB or RS232).
Monitoring and control from a distance
Victron Ethernet Remote, Victron Global Remote and the Color Control Panel enable remote maintenance and remote monitoring of the Multiplus. In addition, the system data can be saved and viewed free of charge on the VRM (Victron Remote Management) website.
Configuration from a distance
If systems are connected to the Ethernet with a color control panel, you can be accessed and settings can be changed from a distance.
