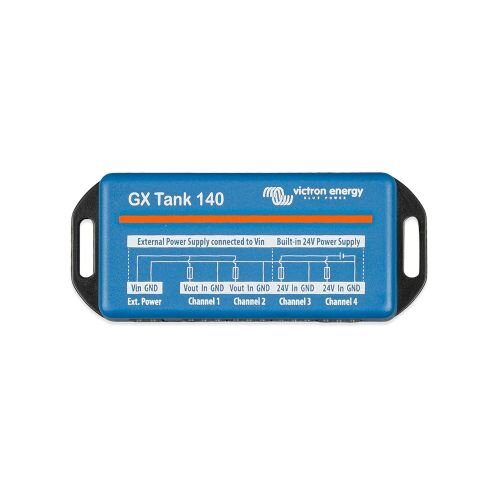

The gx Tank 140 from victron Energy enables monitoring via your gx device. It can be used to connect and monitor up to four tank level sensors.

Simple monitoring

The gx Tank 140 records measured values from up to four tank level sensors. The tank levels can be read out both locally in the system and remotely via the vrm portal.

The gx Tank is compatible with both current transmitters (4-20 mA) and voltage transmitters (0-10 v). The gx device is connected via usb, which also supplies the gx Tank with power. No additional power cables are required.

Defective sensors and wiring problems are detected. An alarm is triggered if the values are outside the permissible range.

Functions of the gx Tank 140

Interfaces for tank level sensors with 4 to 20 mA or 0 to 10 v (a combination is also possible).

connection to the gx device via the usb interface.

Channels 1 and 2 use a fused power source from the vin connection for sensor excitation.

Channels 3 and 4 use an integrated 24 v power source for sensor excitation, which is supplied via the usb interface. The integrated 24 V power source simplifies installation and wiring, as no additional power source is required.

Configurable input range, e.g. for connecting a sensor with 0 to 5 v.

Configurable mean value filter (1 to 60 seconds) for damping the effect of liquid movement.

Sensor error detection: An alarm is triggered if the input signal is outside the normal/acceptable operating range Operating range.

full integration with a gx device for configuration, monitoring and control of tank pumps (relays).

Scope of delivery:

1x gx Tank 140 unit with non-detachable, 1.5 m long usb cable 1x 2-pin, plug-in connection block (for external power supply) 4x 3-pin, plug-in connection block (for sensor connection)

Shipping weight:

0,11 kg
Item weight:

0,10 kg
