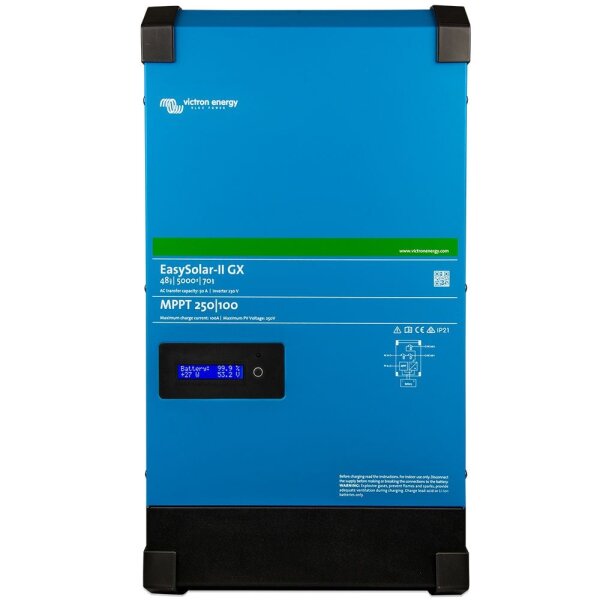

Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX

Stock: Limited stock
SKU: PMP482507010
GTIN: 8719076049333
Manufacturers: Victron Energy

Der Victron EasySolar-II 48/5000/70-50 MPPT 250/100 GX Gerätekombination von Victron Energy kombiniert einen Wechselrichter/Ladegerät, einen Solar-Laderegler und ein GX-Gerät. Die Elemente sind vorverkabelt und in einer einzigen Einheit integriert. Dies vereinfacht die meisten Installationen erheblich und spart Zeit und Geld.
Komponenten: MultiPlus-II-Wechselrichter/Ladegerät & SmartSolar MPPT 250/100-Tr Solar-Laderegler & GX-Gerät mit 2x 16 Zeichen Anzeige und Wi-Fi

RRP 2.377,62 €

1.520,82 €

incl. 19% VAT , plus

Net Price: 1.278,00 €

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Delivery in 8-10 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

TheVictron Easysolar-II 48/5000/70-50 mppt 250/100 GX Victron Energy combines an inverter/charger, a solar loader and a GX device. The elements are preloaded and integrated in a single unit. This simplifies most installations and saves time and money.

Components
-Multiplus II inverter/charger
-SmartSolar Mppt 250/100-TR solar loader control
- GX device with 2x 16 characters display

Solar charging controller: Smartsolar Mppt 250/100-TR
The integrated loading controller comes from the SmartSolar series of Victron and guarantees maximum yields with the ultra -fast MPPT procedure. Especially when the sky is covered, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield compared to PWM charging controls by up to 30 % and compared to slower MPPT regulators by up to 10 %.
Critical partial shading of the solar modules Is recognized by the MPP controller and a new operating point is being sought so that even and the most unfavorable circumstances can still be achieved. The DC output of the SmartSolar Mppt is switched in parallel to the DC connection of the Multiplus II inverter/charger. The in/off mechanism of the Multiplus-II also controls the SmartSolar.

Multiplus II 48/5000/70-50 inverter and battery charger
The multiplus-II 48/5000/70-50 from Victron is a device combination of 4000 W Sinus inverter and Battery charger. The smart integrated battery charger makes impressive 70 A so that the batteries can be loaded extremely quickly if land/network current is available. The Sinus voltage converter integrated in the Multiplus transforms the 48 V DC from the battery into a 230 V AC voltage. Thanks to the real sine wave, the quality of the voltage is also perfect for sensitive electronic devices.

GX device
The integrated GX device includes:
-A BMS-CAN interface. This can be used to connect to a compatible battery managed by the CANBUS. Note that this is not a Ve.Cankomatibled connection.
- a USB connection
- an Ethernet connection
- a Ve.direct connection
The GX device controls the Multiplus-II and the SmartSolar with a Ve.Bus and a Ve.Direct connection.

Advertisement and wifi
The display shows parameters for battery, inverter and solar loader. The parameters can be accessed with a smartphone or another Wi-Fi-enabled device. Wi-Fi can also be used to set up the system and change settings.

The following properties are characterized by the high-end device:
- 4000 W continuous output AC, 9000 W peak output
- 48 V battery system voltage
- inverter with pure sinus, suitable as a UPS
- Max. 5800 W PV performance
- Charge of the main battery with up to 70 a
- Transfer switch with 50 a
- Color Control display for settings and display of system information

Technical specifications:
Inverter:
- Input voltage 38-66V
- Output voltage 230 VAC
- Kont. Output power 4000W
- Top performance 1000W
- Transfer switch 100a
- Max. Effect 95%
Charger:
- Input voltage: 187-265 VAC
- Entrance frequency 45-65 Hz
- Constant charging voltage 57.6V
- charging current 70a
Solar loader:
- Mppt 150/100-MC4
- Max. Output current 100A
- Max. PV performance 5800W
- Max. Effect 98%
- Constant charging voltage 57.6V
Operating temperature range: -40 ° C - +65 ° C
Protection class: IP21
Dimensions: 604 x 323 x 253mm
Weight: 39 kg
