Unlike most other brands and ranges, the Blue Smart IP22 charger will attempt to recharge a deeply discharged battery by forcing a low charge current on it. Normal charging will then resume as soon as there is sufficient voltage between the battery terminals.
Remote battery status with the VictronConnect app
The Blue Smart IP22 12/30(3) charger has built-in Bluetooth. This allows you to check the status of the charger and battery on a smartphone, tablet or laptop. All charger settings can be configured using the VictronConnect app.
The main technical characteristics of the 12/30(3) Blue Smart IP22 Charger
- Victron part number: BPC123044002
- charges 12V lead-acid, gel, AGM and lithium batteries
- 30A maximum charging current
- 3 battery charging outputs
- very compact dimensions: 235 x 108 x 65mm
- highly modern, seven-stage loading algorithm
- with integrated Bluetooth for use with the free VictronConnect app
Other features of the 12/30(3) Blue Smart IP22 battery charger
Trend-setting efficiency
With an efficiency of up to 94%, these chargers generate up to four times less heat compared to the industry standard. Also, after the battery is fully charged, power consumption drops to less than 0.5 watts, which is about five to ten times better than the industry standard.
Adaptive 7-stage loading algorithm
The 12/30(3) Blue Smart charger is characterized by its microprocessor-controlled, "adaptive" battery management. "Adaptive" means that the The charging process is automatically adapted to the type of battery usage.
Storage mode: Less maintenance and aging when the battery is idle
Storage mode is always activated if there is no discharge within 24 hours. The float charge voltage is then set to 2.2V/cell (13.2V for a 12V battery) to minimize gassing and thereby prevent corrosion on the positive plates. Once a week the voltage is increased to the gassing voltage level. This achieves a kind of equalization charge that prevents electrolyte stratification and sulfation - the two main reasons for premature battery failure.
Scope of delivery:

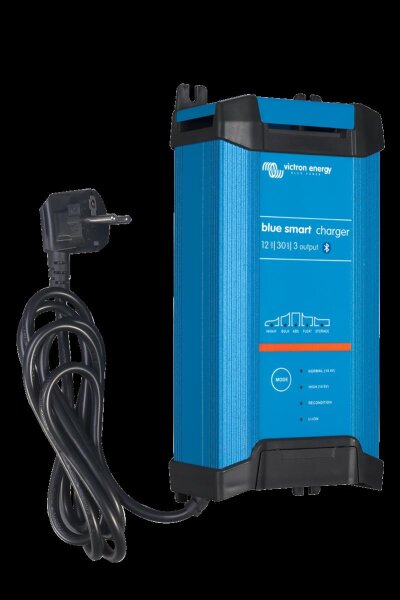

1x Victron Energy BPC123044002 12/30(3) IP22 Blue Smart Charger
1x operating instructions
|
degree of protection IP
|
IP22
|
|
EAN
|
8719076037460
|
|
Ambient temperature
|
-20°C - +50°C
|
|
manufacturer part number
|
BPC123044002
|
|
Warranty
|
2 years
|
|
humidity
|
max. 98%, non-condensing
|
|
manufacturer
|
Victron, Victron Energy
|
|
weight
|
0.9 kg
|
|
Dimensions (LxWxH)
|
10.8 x 23.5 x 6.5 cm
|
.
