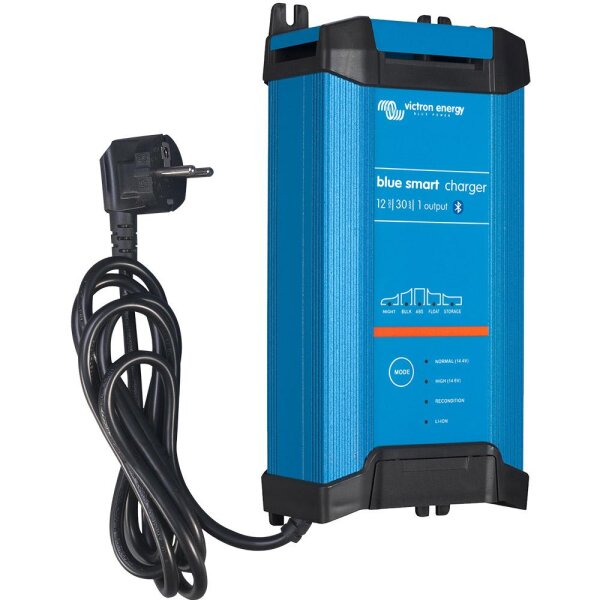

The Blue Smart IP22 12/30 (1) charger from Victron Energy (MPN BPC123047002) is a professional, compact 12V 30A battery charger of the latest generation with a charging output and built -in Bluetooth! The Blue Smart IP22 12/30 (1) charger can be used with devices in your workshop or with motor vehicles such as (classic) cars, motorcycles, boats and motorhomes and loads both classic 12V lead batteries and modern lithium batteries.
Highlights of the 12/30 (1) Blue Smart IP22 Charger
Intelligent charging until the perfect battery state ...
The seven-level loading algorithm gets the best out of her battery. The charger provides the battery the energy it needs, it keeps it in a healthy condition, ensures better performance ... and a longer life.
Restoration of deep-downloaded "dead" batteries
Unlike most other brands and product series, the Blue Smart IP22 charger will try to recharge a deep-discharged battery by forceing it out with a weak charging current. The normal charging operation is then resumed as soon as there is sufficient voltage between the battery connections.
Call the battery status from afar, with the VictronConnect app
The Blue Smart IP22 12/30 (1) charger has built -in Bluetooth. In this way, the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.
The most important technical features of the 12/30 (1) Blue Smart IP22 Charger
- Victron part number: BPC123042002
- Lades 12V lead-acid, gel, agm and lithium batteries
- 30a maximum charging current
- 1 battery charging output
- Very compact dimensions: 235 x 108 x 65mm
- Highly modern, seven-level loading algorithm
- With integrated Bluetooth for use with the free VictronConnect app
Other performance features of the 12/30 (1) Blue Smart IP22 battery loader
Trend -setting efficiency
With an efficiency of up to 94%, these chargers generate up to four times less heat compared to the industrial standard. After the battery has also been fully charged, electricity consumption drops to less than 0.5 watts, which is about five to ten times better than the industrial standard.
Adaptive 7-stable loading algorithm
The 12/30 (1) Blue Smart charger is characterized by its microprocessor-controlled, "adaptive" battery management. “Adaptive” means that the loading process is automatically adjusted to the type of battery use.
Storage mode: Less maintenance and aging in the resting state of the battery
The storage mode is always activated if no discharge has been carried out within 24 hours. The loading tension is then reduced to 2.2V/cell (13.2V for a 12V battery) in order to minimize the gas development and thus prevent corrosion on the positive plates. Once a week, the voltage is increased to the level of the gas voltage. This achieves a kind of compensation charge that prevents the electrolystal layering and sulfating - the two main reasons for premature battery failure.
Scope of delivery:
1x Victron Energy BPC123042002 12/30 (1) IP22 Blue Smart Charger
1x operating instructions
