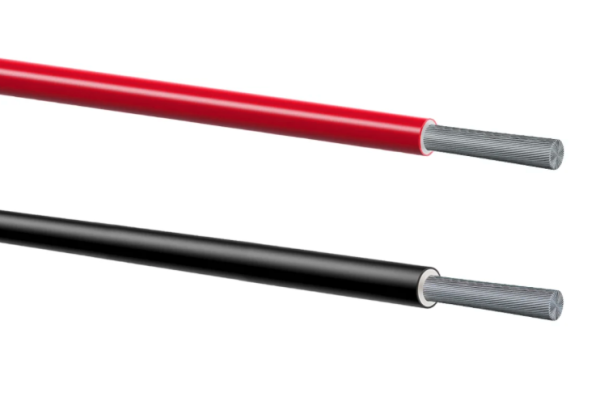

BETAtherm - oder vergleichbar 145 (SO 07K-K) Kabel feindrähtig verzinnt 70 schwarz

SKU: 341221
Manufacturers: Studer Cables

Nennquerschnitt mm²
Farbe

30,25 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Shipping in 1-3 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

High-quality tinned single-core cable, available by the meter
**BETAtherm® 145 (SO 07Z-K) or equivalent, such as LAPP or Leoni.**

- **Conductor:** Tinned copper stranded wire, finely stranded according to VDE 0295/IEC 60228, Class 5
- **Insulation:** Polyolefin copolymer, electron-beam crosslinked, HF90
- **Nominal voltage:**
- U₀/U ≤ 1 mm²: 300 V / 500 V
- U₀/U ≥ 1.5 mm²: 450 V / 750 V
- Fixed and protected installation: U₀/U ≥ 1.5 mm²: 600 V / 1000 V
- **Operating temperature at the conductor:**
- Fixed installation: -55°C to +145°C
- Occasionally moved: -35°C to +120°C
- **Halogen-free:** Compliant with IEC 60754-1, EN 50267-2-1
- **Flame retardant:** Compliant with EN/IEC 60332-1-2

**Certifications:**
- VDE registration number: 9887
- DNV/GL
- Lloyd’s Register (LR)
- BUREAU VERITAS (BV)
- ÖVE
