In addition to the Pylontech US5000 LiFePO4 battery, this bundle provides you with matching brackets, which are useful for better air circulation and vertical stacking of the batteries. You will also receive an inverter connection set for connecting all components. Below the description you will find a list of compatible inverters that have been tested by the manufacturer in conjunction with the battery storage system.
A compatibility list for Pylontech with over 30 brands and companies, including Victron Energy, Growatt, Solis and many more, can be found in our photo gallery (Pylontech Compatibility List)

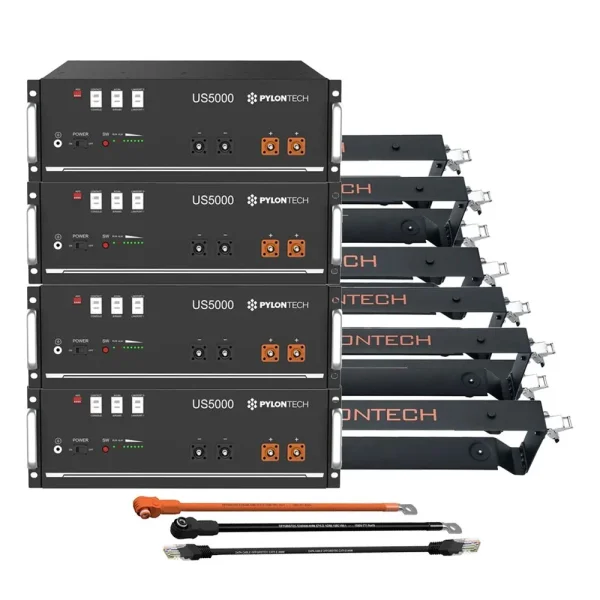

The Pylontech US5000 contains:
4x Pylontech US5000 LiFePO4
4x Pylontech holder / brackets for US5000
1x Pylontech battery connection cable set Pylontech to inverter
Pylontech US5000 LiFePO4
The Pylontech US5000 is a lithium storage system of the latest generation. The storage tank has been specially developed to meet the high demands placed on a solar storage tank today. Even with regular deep discharges, the Pylontech US5000 guarantees maximum safety and a long service life thanks to the latest technology. In addition, the latest battery from the market-leading manufacturer, now with 4.8kWh per module, once again offers a high level of safety. The battery management system (BMS) built into each module regulates this by monitoring and balancing and offers protection against:
overcharging
overvoltage during charging
excessive currents during charging and discharging
Over- and undertemperature
Short circuit and reverse polarity
Continuous monitoring of the individual cell voltages (cell balance)
Properties
Extremely cycle-resistant - over 6000 cycles at 95% DoD
Lifespan of over 10 years
Absolutely intrinsically safe lithium technology
Compatible with many available inverters
Automatic address setting when connected in multi-groups
High charging and discharging capacity possible
Integrated BMS
Very high storage density - low weight and compact design
Easy installation thanks to modular design
Absolutely maintenance-free and durable
Built-in soft-start function, which is able to reduce the power surge when the inverter is started from the battery
Dual active protection at BMS level
Supports WakeUp by 5-12V signal from RJ45 port
Pre-charge function to protect the ESS system from overvoltage function
Modular design
The system has a modular design and can be configured precisely to the required storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) battery and an integrated BMS.
High cycle life
The extremely long cycle life of the LiFePo4 cells used make Pylontech US5000 modules the ideal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, the Pylontech storage system offers several advantages over typical lead batteries and other lithium technologies.
Technical data
Battery type: Lithium iron phosphate (LiFePo4)
Nominal voltage: 48V
Nominal capacity: 4800 Wh
Usable capacity (95% DoD): 4560 Wh
Discharge voltage range: 44.5 - 53.5V
Charge voltage range: 52.5 - 53.5V
Max. Peak (discharging) charging current: 200A (15sec)
Max. (discharge) charging current: 120A (15min)
Recommended charging/discharging current: 75A
Communication: RS485, CAN
Weight: 38 kg
Dimensions: 442 x 420 x 161 mm
Protection class: IP20
Temperature range charging: 0°C - +55°C
Temperature range discharging: -10°C - +55°C
Temperature range storage: -20°C - +60°C
Lifetime: üover 15 years
Cycle life: üover 6000 at 95% DoD
BMS / ¨monitoring: integrated in each module
Certification: TÜV, CE, UN38.8
Pylontech brackets
The Pylontech brackets are used for vertical stacking of the Pylon battery modules US5000. With these stackable brackets you can stack the Pylontech US5000 batteries and thus ensure the best possible air circulation for the batteries. The batteries should not be stacked directly on top of each other without spacing. A clamping device on the sides of the bracket can be used to connect and secure stacked brackets together. A maximum of 4 brackets can be stacked in this way. One set consisting of two brackets is required per Pylontech battery.
Properties
Best possible air circulation
Connecting and securing stacked brackets via clamping device
Stackable with up to four batteries
Set of two brackets for one battery
Connection set
The Pylontech battery connection cable set (MPN BW0US3000BAL0002) includes 2 x 2 meter cables (plus/minus) with a cross-section of 25mm² each and a CAN data cable with RJ45 connectors on both sides.
The set is required to connect the Pylontech batteries to an inverter.
Contents
2m cable plus with M8 ring cable lug and amphenol connection (Pylontech)
2m cable minus with M8 ring cable lug and amphenol connection (Pylontech)
CAN data cable with RJ45 plugs on both sides
