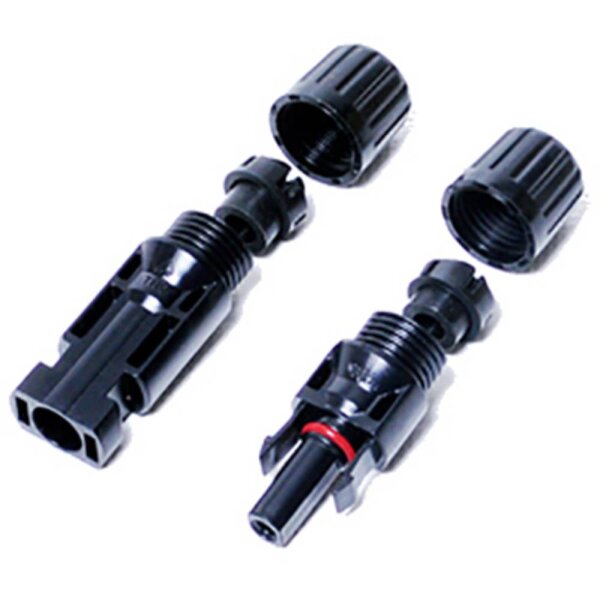

The Victron Energy solar connector set (MPN: SCA520300100) is a photovoltaic connector set for terminating solar cables with a conductor cross-section of 4 to 6 mm². The set consists of a male connector and a female connector, including the matching crimp contacts, and is suitable for permanently secure DC connections in photovoltaic systems. The connectors feature a snap-in locking system, high protection against accidental contact and weathering, and reliable strain relief.
Your benefits
Solar connector pair with 1 × male connector and 1 × female connector
Suitable for solar cables with a conductor cross-section of 4–6 mm²
For system voltages up to 1,000 V DC
Rated current up to 30 A
IP67 protection rating when connected
Snap-in locking mechanism for a secure connection
Tin-plated copper contacts for reliable current transmission
Temperature range from -40 °C to +90 °C
UV- and weather-resistant for outdoor use
For assembling photovoltaic cables
Solar connectors are used to securely connect solar modules, extension cables, or connection cables to one another. This set is suitable for solar cables with a conductor cross-section of 4 to 6 mm² and enables a durable, high-load connection in the DC range. The integrated snap-in locking system prevents accidental disconnection of the connector and, together with the sealing elements, ensures high resistance to moisture, dust, and weather conditions.
Reliable Plug-in and Contact System
The contacts are made of tinned copper and are designed for a permanently secure electrical connection and low contact resistance. When connected, the connector system offers an IP67 protection rating and is therefore also suitable for the typical environmental conditions of outdoor photovoltaic systems.
Installation Instructions
The connectors are intended for crimp installation. To ensure a permanently reliable connection, suitable crimping and installation tools should be used. After crimping, insert the contact and cable into the connector housing until they snap into place. Then tighten the cable gland, which simultaneously provides strain relief and creates a seal.
Compatibility
The solar connector set is designed for photovoltaic cables with a conductor cross-section of 4 to 6 mm². When selecting connectors, consider not only the conductor cross-section but also the permissible outer cable diameter to ensure that the seal and strain relief function correctly. The connectors should be used and installed in accordance with the respective manufacturer’s and system specifications to ensure the intended electrical and mechanical properties.
Technical Data
Manufacturer: Victron Energy
MPN: SCA520300100
Product Type: Solar Connector Pair
System voltage: up to 1,000 V DC
Rated current: up to 30 A
Suitable for conductor cross-sections: 4–6 mm²
Insulation material: PA
Flame class: UL94 V-0
Cable strain relief in accordance with IEC 61984
Protection rating (when plugged in): IP67
Protection against accidental contact (unplugged): IP2X
Temperature range: -40 °C to +90 °C
Package Contents
1 × solar connector
1 × solar receptacle
Matching crimp contacts for both connectors
