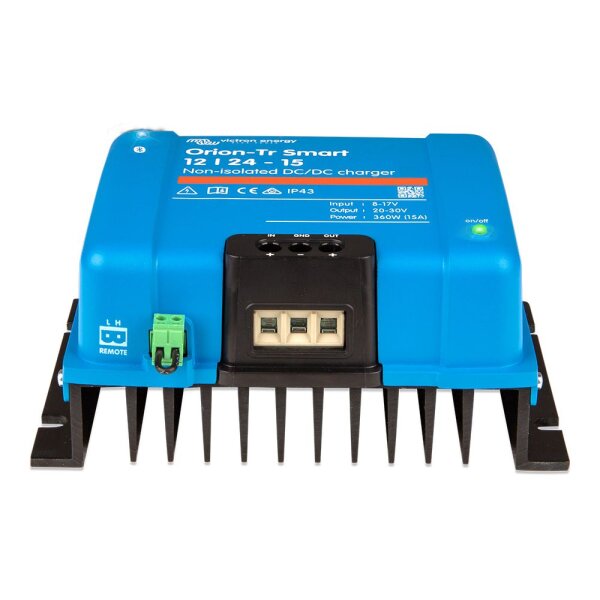

Victron Orion-Tr Smart 12/24-15A Non-isolated DC-DC Wandler

SKU: ORI122436140
GTIN: 8719076048961
Manufacturers: Victron Energy

-36%

174,90 €

RRP ~~273,70 €~~

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Low stock level
Ships in 8-12 business days (Mon-Fri) (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

The Orion Tr-Smart DC-DC from Victron Energy is a professional, DC to DC adaptive 3-stage charger with integrated Bluetooth, known on the market as a battery-to-battery (B2B) charger. The charge booster is suitable for use in dual battery systems in vehicles or on boats where the alternator and the starter battery are used to charge the service battery. The charger can be used in 12V or 24V systems and is suitable for both lead-acid and lithium batteries. Models up to 400W are available and an unlimited number of devices can be connected in parallel to increase the output power.

Properties:
- Suitable for Bluetooth Smart
- Fully programmable
- Adaptive 3-stage charging algorithm
- Remote on/off switching
- Short-circuit proof
- Parallel connection to increase the output current possible
- Ambient temperature protection
- Protection class IP43

Bluetooth Smart:
Monitoring, changing settings and updating the charger with newly available software functions can be done with any Bluetooth-enabled smartphone, tablet or other device.

Adaptive 3-stage charging algorithm: Constant current - Constant voltage - Conservation
- With lead batteries, it is important that the charging time is kept short during shallow discharges in order to avoid overcharging the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure that the battery is fully charged.
- For lithium batteries, the recording time is fixed, with a default setting of 2 hours.
- Alternatively, a fixed output voltage can be selected.

Remote on/off switch:
A remote-controlled on/off switch or a relay contact can be connected to the two-pin plug. Alternatively, connection H (right) of the two-pin plug can be connected to a positive battery terminal or connection L (left) of the two-pin plug can be connected to the negative battery terminal (or to the body of a vehicle, for example).

Technical data:
- Input voltage range: 10-17 V
- Nominal output voltage: 24.2 V
- Output voltage setting range: 20-30 V
- Output voltage tolerance: ±0.2 V
- Cont. Output current at rated output voltage and 40°: 15 A
- Cont. Output power at 40°C: 360 W
- Operating temperature range: -20°C - +55°C
- Weight: 1.8 kg
- Dimensions: 130 x 186 x 80 mm

Scope of delivery:
1x Victron Energy Orion-Tr Smart DC/DC Charging Booster 12/24-15A (360W) ORI122436140

Shipping weight:

1,92 kg
Item weight:

1,90 kg
