Victron BlueSolar PWM-LCD&USB 12/24V-10A solar controller

SKU: SCC010010050
GTIN: 8719076046189
Manufacturers: Victron Energy

31,02 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Delivery in 8-10 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

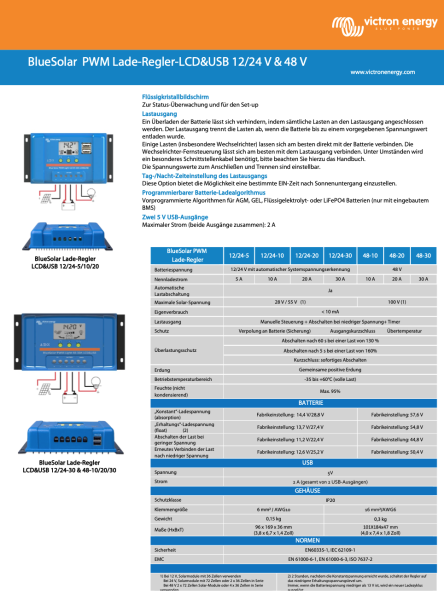

Victron BlueSolar PWM-LCD&USB 12/24V-10A solar controller
The series of BlueSolar charge controllers uses a pulse width modulation (PWM) combined with a multi-stage charge control algorithm

Functions
- Charging the battery in three stages: Constant current, constant voltage, charge retention
- Battery type: lead-acid and LiFePO4 (with integrated BMS)
- Protection against overcurrent.
- Short-circuit protection.
- Reverse polarity protection for solar modules and/or battery.
- Load switch-off at low voltage.
- Temperature protection
- Fully programmable light control function

Fluorescent crystal screen for status monitoring and set-up

Load output
Overcharging of the battery can be prevented by connecting all loads to the load output. The load output disconnects the loads when the battery has been discharged to a specified voltage value.
Some loads (especially inverters) are best connected directly to the battery. The inverter remote control is best connected to the load output. A special interface cable may be required, please refer to the manual.
The voltage values for connecting and disconnecting are adjustable.

Day/night time setting of the load output
This option offers the possibility of setting a specific ON time after sunset.

Programmable battery charging algorithm
Preprogrammed algorithms for AGM, GEL, liquid electrolyte or LiFePO4 batteries (only with built-in BMS)

Two 5V USB outputs
Maximum current (both outputs together): 2 A

96x169x36cm
0.15kg

Shipping weight:

0,18 kg
Item weight:

0,15 kg
