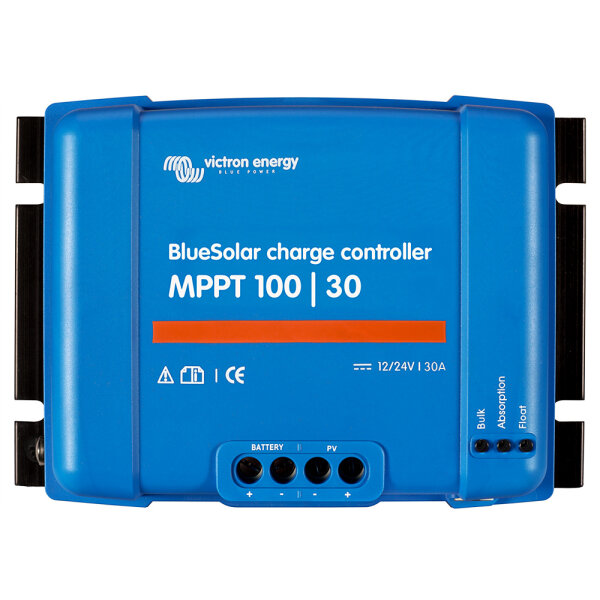

The Victron MPPT 100/30 belongs to the large family of BlueSolar MPPT charge controllers and, like its larger siblings, it already offers ultra-fast power tracking and can therefore increase the yield of your solar system. Apart from the greater charging and PV output, this Blue differs even more from the lower models. This is because the 100/30 controller has the ability to fully program and save various charging algorithms. The algorithms created can then be selected directly via a switch on the housing. The load output directly on the controller is no longer available from this model onwards.
More protection
Compared to the 75/10, 75/15 and 100/15 models, the BlueSolar 100/30 MPPT ühas overheating protection with a switch-off function and automatic restart after reaching a normal operating temperature.
High-speed MPP tracker
Especially in cloudy weather, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield by up to 30% compared to PWM charging controllers and by up to 10% compared to slower MPPT controllers.In addition, the 100/30 features several other innovative technologies such as the VE.Direct communication port.
Options for programming, real-time data and history display
Modern Apple and Android smartphones, tablets, Macbooks and other devices can be connected to the Bluetooth Smart Dongles and the MPPT app or the GX Color Control via VE.Direct, for example. Please note that Bluetooth Smart Dongles and GX Color Control are separate items that are not included in the scope of delivery of the charge controller but can be purchased from us as an option.
Features
The latest generation of ultra-fast MPP tracker ensures the best possible yield even under cloudy skies
Integrated VE.Direct data communication port for connection (for communication with additional devices such as Bluetooth Smart Dongle or the GX Color Control Panel)
High maximum efficiency of 98%
Fully programmable charging algorithms that can later be activated and used manually via a switch on the housing;nominal charging current 30A, 100V maximum PV open-circuit voltage
440W maximum PV power for 12V, 880W for 24V systems
integrated protection against battery reverse polarity
multi-stage and adaptive charging algorithm
day/night time control and light dimming option
130x186x70
VE.Direct data communication port
VE.Direct in text mode transmits all important parameters to other devices connected to the charge controller every second and thus offers the possibility of communication with additional devices such as the Bluetooth Smart Dongle or the GX Color Control Panel from Victron. The VE.Direct connection is intended for products where full Canbus integration (VE-Direct) would be too expensive. You can find more information about VE.Direct in our Victron brand world.
Scope of delivery
1x Victron SCC020030200 BlueSolar MPPT 100/30 12V 24V 30A charge controller
