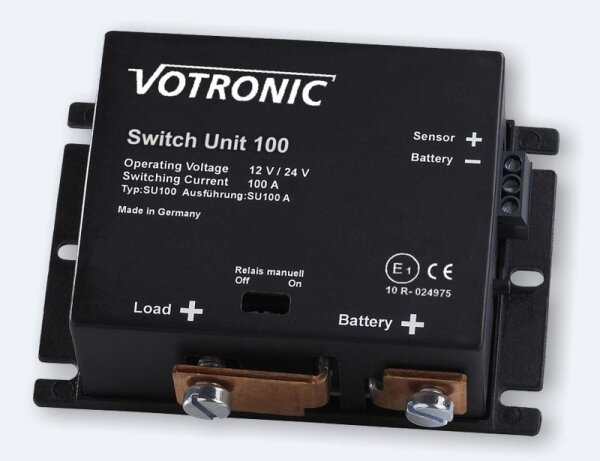

VOTRONIC Switch Unit 100

SKU: 2072
GTIN: 4250683601377
Manufacturers: Votronic

96,67 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

(Save 30.4%, i.e. 42,23 €)

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Shipping in 1-3 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

The Votronic Switch Units work based on a bistable performance relay. Your self -consumption is extremely low. They are particularly suitable as a remote -controlled main switch or as a load relay, which should be switched on for a long time. The current resilience is 40 or 100 A.

The Switch units can be remotely used by a simple switch (1 pol. ON / OFF).

In addition, using an emergency one function (Emergency switch), consumers can also be switched on or off manually on the relay.

The area of application extends to motorhomes, boats to emergency vehicles:

Easy control via simple on / off switch
High switching currents, highly overloadable for a short time
Usable as a battery switch by simple on / off switch (remote control)
Visible switching state display visible from the outside
Electronic delay prevents too fast reaction, e.g. B. voltage burglaries, switch on strong consumers
Suitable for continuous operation (very low self -consumption / conforming EN13976).
No power consumption when switching off via an external switch (remote control)
Automatic shutdown with undervoltage 8.5 V (minimal operating voltage of the Switch Unit)

Technical specifications

Device type	Art.- No.	Operation- tension [V]	Switching current Permanent load current [A]	Load current briefly [A]	Own consumption Calm/a [Ma]	Cable- connections	Weight [G]
Switch unit 40	2071	12 and 24	40	60 (1 second)	0 / <3	2.5 - 10 mm²	97
Switch unit 100	2072	12 and 24	100	150 (10 seconds)	0 / <3	M6	180
Test mark:	CE, e-test (EMV/car directive)
Scope of delivery:	Operating instructions, protective angle (only with Switch Unit 100)

Shipping weight:

0,21 kg
Item weight:

0,17 kg

Manufacturer
Name: Votronic
