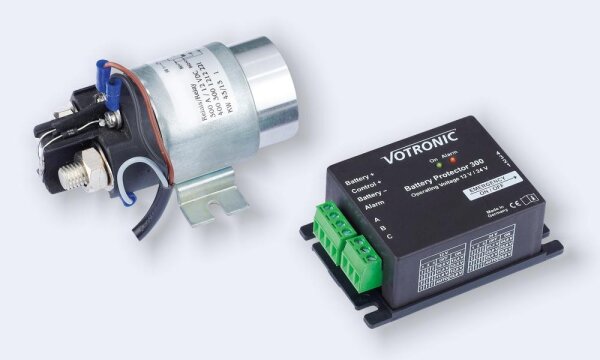

VOTRONIC Battery Protector 300

SKU: 3084
GTIN: 4250683615190
Manufacturers: Votronic

363,78 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

(Save 35.91%, i.e. 203,82 €)

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Low stock level
(DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

battery guard

Undervoltage protection for board and starter battery

motorhome

off-road

blue light

The VOTRONIC Battery Protector 40 and Battery Protector 100 devices are connected between the supply battery and the consumer and are suitable for all lead battery types (acid, gel, AGM) and brands. They protect the battery from dangerous total discharge and consumers and equipment from under and overvoltage and, controlled by an external switch, can also be used as a remote-controlled main battery switch.

Operation as Battery Protector:

Optical display of the operating status by two LEDs
Acoustic alarm can be activated (sounds when the pre-warning threshold is reached or when the device is switched off)
Output for external alarm display (max. 0.3 A, short-circuit proof)
Suitable for all common lead battery types with 12 V or 24 V nominal voltage (acid, gel, AGM,...)
Suitable for lithium batteries (LiFePO4)
Can also be used as a powerful battery main switch with protective function
Various switching thresholds can be configured
The shutdown can be canceled manually at any time using the EMERGENCY ON function

Operation as a switch unit:

Can be used as a battery main switch
Electronic delay prevents too rapid a reaction, eg in the event of voltage dips caused by switching on heavy consumers.
Optical display of the operating status by two LEDs
Alternatively, it can be used as a remote-controlled power relay (“Switch Unit”), eg on the LCD Battery Computer S.

device type	Art.- No.	operational tension [V]	switching current duration/short [A]	switching threshold undervoltage [V]	reset point undervoltage [V]	Above- voltage FROM A [V]	weight [G]
Battery Protector 300	3084	12 and 24	300 / 600	10.6 / 11.5 / 11.8 ^1st 9.5 - 12.2 ^1, ²	12.4 / 12.5 / 12.8 ^1st 12.5 ^1, ²	15.5 / 15.0 ^1st	680 / 90
	¹ with 24 V operation values x 2 ² automatic switching thresholds
Dimensions (W x H x D)	105 x 36 x 71 mm / 90 x 60 x 33 (incl. mounting flanges, without connections)
Approval:	CE, E-test (EMC/Automotive Directive)
Scope of delivery:	operation manual
Temperature range:	-20 / +50°C

Delivery time: 1-3 working days

Shipping weight:

0,77 kg
Item weight:

0,09 kg
