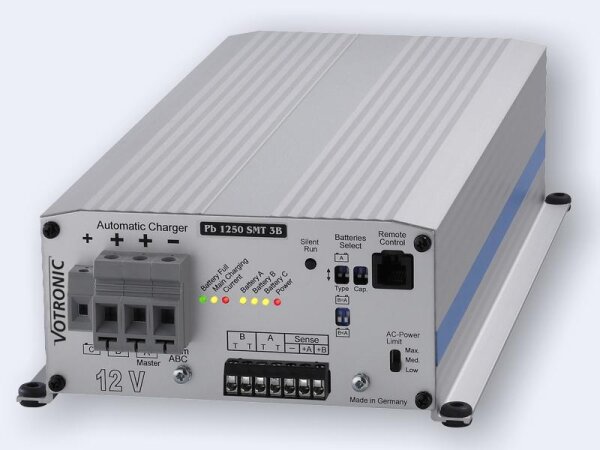

VOTRONIC Automatic Charger Pb 1250 SMT 3B

SKU: 3125
GTIN: 4250683615640
Manufacturers: Votronic

Due to illness, our customer service hotline is currently unavailable. All orders and inquiries will be processed as quickly as usual.

388,37 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

(Save 41.39%, i.e. 274,23 €)

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Shipping in 1-3 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

Loading programs No. 1, 2, 4 and Li (gel, AGM, acid, lifepo4) adjustable to battery type
The charging voltage is free of tips and regulated so that an overload of the batteries is excluded.
Fully automatic operation: The charger can be constantly connected to the battery and keeps it in full load. In the event of a network failure, the batteries will not be unloaded (separation by security switch).
Lithium LIFEPO4-MAINTENANCE, Auto Wake Up, maintenance phase: Regular automatic activation of the battery cell balancing every 10 days to ensure the full load of the battery.
Lead battery regeneration with long downtimes twice a week against harmful acidic layers.
Parallel and buffer operation: With simultaneous consumption, the battery is charged or fully received. The adaptation of the loading times calculates and monitors the charger automatically.
Monitoring-free charge: Multiple protection against overload, overheating, overvoltage, short circuit, polarity, misconduct and battery recharge through electronic stop to the complete separation of charger and battery with built-in safety switch.
Connection for battery temperature sensor (accessories temperature sensor 825, item no. 2001): In the case of lead batteries (acidity, gel, AGM), the charging voltage is automatically adjusted to the battery temperature, causes a better in cold Full loading of the weaker battery, in summer temperatures, unnecessary battery absorbing and thus battery stress is avoided.
With LIFEPO4 batteries, the battery temperature sensor is required for the function: it serves battery protection at high and especially at low temperatures below 0 ° C.
Silent Run function: At the push of a button noise-optimized way of working (night operation).
Power supply function: enables consumers to be supplied without a battery (e.g. battery change).
Charging cable compensation: Tension losses on the charging cables are automatically excavated.
Construction network filter: Problem-free parallel operation with solar systems, wind and benzingen generators, alternators etc. on a battery.
Charging aid for low -level lead batteries: gentle invitation to the (lead -acid, -gel, -gm) battery up to 8 V, then powerful support of the battery with any still switched on consumers.
Separation of the batteries in the event of a power failure, overheating, misconduct (safety switch per charging output)
Separate side charging output "S" for the support and maintenance charge of the vehicle starter battery
Built-in charging current distributor with 2 main charging outputs, each with max.
Charging roma distributor optionally switchable on your own charging program for starter battery
Starter battery is also loaded with full charging current if necessary (short vehicle level)
Battery capacity 4 times adjustable (a total of 12 charging programs)
Inputs for sensitory sensor (scythe) lines, optionally usable for over long charging lines and/or external, lossy diodes charging current distributors
Network/charging capacity reduced with low-performance or restricted network supply, e.g. weakly secured land power supply, generator operation etc. (Power-Limit function)

Also available in boats with the electronics protected from moisture!

Technical specifications

Network voltage (network frequency 45 - 65 Hz)	110 V - 230 V
Network function voltage area, all types	85 V - 270 V, briefly 305 V (5 seconds)
Network voltage area for full charging power	190 V - 270 V
Network performance max.	840 W
Network current recording (AC) Max.:	5.2 a
Active sinus-shaped power factor correction (Cosphi <= 1)	Yes
Charging current approx. 110 V network voltage	33 a
Switch "AC Power Limit", limitation of the network electricity recording / performance:
Position "max" (maximum charging power):	5.2 A / 680 W
Position "med" (reduced network and charging power):	1.9 A / 390 W
Position "low" (reduced network and charging power):	1.4 A / 280 W
Load outputs Batteries "A" + "B":
Battery native voltage lead/lifepo4 battery	12 V / 12 V-13.3 V
Battery capacity adjustable (A or A+B total)	88 AH-550 Ah
Charging current i-phase (A, B or A+B) Max	50 A
Loading/buffer/load current, regulated U1-, U2-, U3 phase	0 a - 50 a
Automatic charging current distributor Batteries A / B:	Yes
Minimum battery voltage for the start of the load	0 V
Preliminary flow, lowest -download batteries 0 V - 8 V	25 a
Return current made of battery (power failure)	<0.2 ma
Reset voltage (30 sec), battery type dependent	12.75 V / 13.25 V
Charging stress limit (protection of affiliated consumers)	15.0 V
External overvoltage shutdown (20 sec)	15.5 V
Tension	<40 MV RMS
Charging timer	4-fold
Group/short circuit/back load/safety protection	Yes
Safety timer per loading phase I-/U1-/U2-	Yes
Feeler lines "Sense" input, for "-" battery and "+A", "+B"	Yes
Lead battery regeneration with a long service life, 2x aw. 1 H	Yes
Lifepo4 car Wake Up at a long time, 10 daily 0.5 h daily	Yes
or Lifepo4 lithium rest conservation (seasonal company)	Yes
Main charging output battery "A" (master):
Selectable charging programs lead gel/AGM/acidity, lifepo4	4
Loading/buffer/load current, regulated iu1ou2ou3 phase	0 a - 50 a
Input for battery temperature sensor	Yes
Power supply operation (e.g. further supply for battery changes)	Yes
2nd charging output battery "B" (built -in charging current distributor, switchable):
Charging programs optionally like battery "A" Master	Yes
or charging program for vehicle (lead) starter battery	Yes
Loading/buffer/load current, regulated iu1ou2ou3 phase	0 a - 50 a
Input for battery temperature sensor "B"	Yes
Power supply operation (e.g. further supply for battery changes)	Yes
3. In addition to charging output "C" (registration output network):
Battery native voltage (lead)	12 V
Charging current or resilience as a registration output	0 a - 2 a
Overload/ discharge/ short circuit/ back load/ safety protection	Yes
Connection for remote control automatic charger	Yes
Device installation position	any
Temperature range	-20/+45 ° C
Speed -controlled, temperature -controlled fan	Yes
Gradual delegation of the charging capacity at over temperature	Yes
Safety shutdown at overheating	Yes
Fan noise, night operation (Silent Run)	Yes
Protection class / protection class:	I / IP21
Dimensions, including fastening flanges/feet	330 x 139 x 74 mm
Weight:	2450 g
Ambient conditions, humidity	Max. 95 % RF, not condensing
Safety regulations	EN 60335-2-29
Scope of delivery: network cable, operating instructions

Shipping weight:

2,55 kg
Item weight:

2,45 kg
