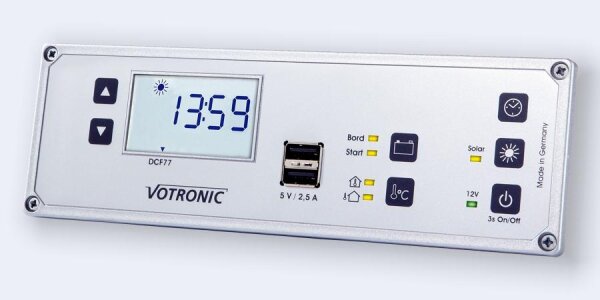

VOTRONIC 5744 VPC Merkur

SKU: 5744
GTIN: 4250683614490
Manufacturers: Votronic

141,93 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

(Save 39.14%, i.e. 91,27 €)

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Low stock level
Shipping in 1-3 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

Delivery time: 1-3 working days

Multi-panel system For motorhomes in 3 different versions

The Votronic Power Control (VPC for short) is an innovative multi-panel system for motorhomes that combines the most important functions and information in one device. The information is shown via a light, white illuminated graphic display. The large -scale values can be read excellently in all lighting conditions, even from a greater distance. Colored light emits signal the selected function at any time. The individual versions differ in their range of functions, which is designed for the specific requirements of the different vehicle types. While the version Jupiter, for example, leaves almost nothing to be desired with regard to energy supply and filling levels, the Mercury execution is particularly recommended for more compact vehicles, which often do not have any fixed tanks.

VPC Terra and Jupiter can also be covered with 3 tanks (e.g. indoor/outdoor tank, summer/winter operation, additional tank etc.). The individual switch 2xum are suitable for switching, e.g. switch panel 16 a s Art. 1289 or switch panel 2x16 a S Art.-No. 1291

All devices have at least one voltage display for the board and starter battery and a switching exit for an external relay as the main switch. A switch-off alarm provider (beer) on the panel and a note in the advertisement draw attention to this when an adjustable energy threshold has been below and the main switch is automatically switched off in a few seconds to prevent a deep discharge of the battery.

The three versions differ in the range of functions as follows:


VPC Terra				-	-	-	-
VPC Merkur		-	-	-
VPC Jupiter	*				-	-

	Voltage display in v the on-board and start battery With undervoltage protection for the on-board battery		Main counter For the on -board supply About switching exit (e.g. over Switch Unit 40 or Switch Unit 100)

	* Only vpc jupiter with Smart shunt: Battery computer for the on-board battery (including battery voltage Start battery) Battery voltage on board battery in V Battery flow in A (+ = load / - = unloading) Battery capacity in Ah and % Remaining term in H until the programmed offset threshold is reached		Solar computer for all votronic Solar controller From 2014 and VBCS Triple Acute solar performance in W Current solar power in A Invited solar capacity in Ah Invited solar energy in kWh Values Wh/kWh and AH are added, displayed and can be reset to "zero" individually.
	Filler display in % For fresh water and sewage tank		Switch for the Fresh water pump Max. 16A (potential -free output)

	thermometer Interior and outer thermometer in ° C Including 1 temperature sensor Clock Time in 24-hour format USB double charging port 5 V / 2.5 a		Thermometer/o'clock Combined function for indoor and outside temperature in ° C including temperature sensors and time in 24-hour format.

Motorhome

Off -road

Device type	Art.- No.	nominal voltage On -board battery [V]	Electricity- recording [Ma]	Switching current pump Max. [A]	Dimensions (WXHXT) [mm]	Installation road [mm]
VPC Terra ¹	5741	12 / 24	6 - 60	16	200 x 65 x 28	185 x 57 x 22
VPC Merkur ²	5744	12	6 - 60	-	200 x 65 x 30	185 x 57 x 24
VPC Jupiter 100 ³	5747	12	13 - 60	16	200 x 65 x 30	185 x 57 x 24
VPC Jupiter 200 ³	5748	12	13 - 60	16	200 x 65 x 30	185 x 57 x 24
VPC Jupiter 400 ³	5749	12	13 - 60	16	200 x 65 x 30	185 x 57 x 24
Test mark: CE, e-test (EMV/car directive)
scope of delivery ¹:	Fastening screws, connection cable for votronic solar controller or VBCS triple 5m long, instructions
scope of delivery ²:	Fastening screws, connection cable for votronic solar controller or VBCS triple 5m long, 2 temperature sensors (inside & outside), instructions
scope of delivery ³:	Mess-Shunt 100 A, 200 A or 400 A included Smart shunt cover, Fastening screws, 1 connection cable 5m long for Votronic solar controller or VBCS triple and for smart shunt, 2 temperature sensors (inside & outside), instructions

Shipping weight:

0,50 kg
Item weight:

0,39 kg

Manufacturer
Name: Votronic
