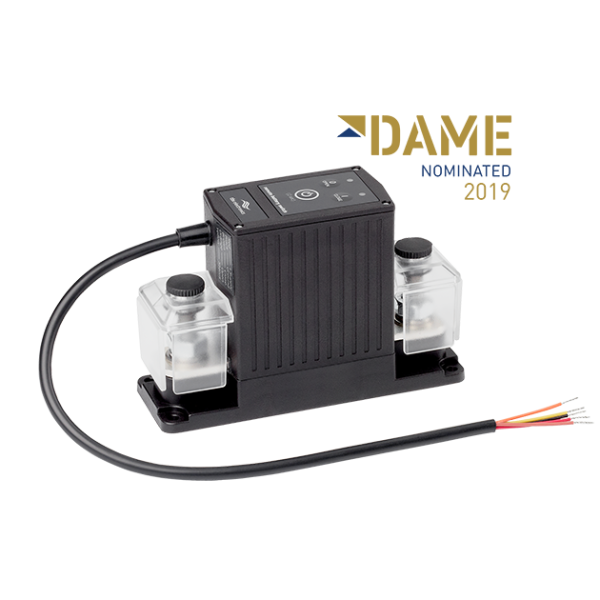

With the TBS separating relay 12V500A, circuits with high loads can be switched. With 12 volts, relay can cope with a permanent current of 500 amps. The relay also withstands 1,000 amperes for a short -term permanent load of up to one minute. The starting point current is 1,600 amps.
The relay can be switched on both buttons on the relay and optionally available remote control. The 40 centimeter long control lines can be extended to up to fifteen meters.
The TBS separating relay 12V500A is ideal for use with the battery types Super B Nomia 12V100AH, NOMIA 12V160AH, NOMIA 12V210AH and NOMIA 12V340AH. The use of a relay or a protective circuit is mandatory for normal use in the motorhome or caravan, otherwise the right to guarantee and guarantee will be lost. With this relay, the performance of the Nomia batteries can be fully exploited. The TBS separate relay 12V500A ensures that the circuit is interrupted immediately for battery problems. To do this, the control lines are simply connected to the battery.
For less performance -hungry applications up to 190 amps is a cheaper, bistabil relay Available in our shop.
Technical specifications
- Weight: 860 g
- Supply voltage range: 7-17 V DC
- Care current: <4 a / 1 MA (sleep mode)
- Operating temperature: -20 ° C to 60 ° C
- Attachment: 4 screws
- Dimensions (BXTXH): 150 x 50 x 100
- Protection class IP65
- Maximum switching voltage: 60 V
- Nominal current: 500 A (0 - 34 V DC) / 350 A (35 - 60 V DC)
- Start -up current: 1,000 A (1 minute)
- Top current: 1.600A (0–34 V DC / 1.200A (35–60 V DC)
- Mechanical lifespan: 100,000 cycles
- Electr. Lifespan: 10,000 cycles (at 400 A/24 V/Ohmsch.)
- Connection bolts: M10
- Remote control: via control cable (40 cm, max. 15 m)
- Certificates: EMC: 2014/30/EU & UNECE 10, Low Voltage Directive 2014/35/EU, Rohs 2011/62/EU, ISO 8846
