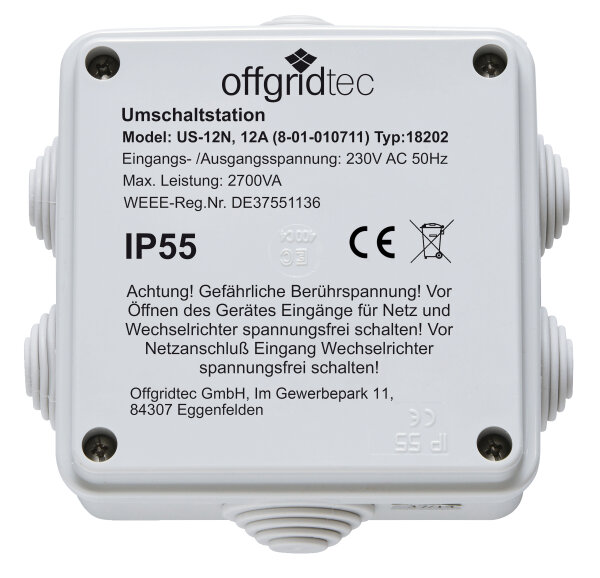

Switching Station for Grid Priority Switching US230/12 12A 2700W 230VAC

SKU: 8-01-010710
GTIN: 4250497806616
Manufacturers: Offgridtec

Due to the holidays and the subsequent inventory, there may be delays in delivery times. Parcel deliveries will be made until December 23 and between the holidays, while freight deliveries will be possible in isolated cases until December 23 and again from January 7, 2026. We apologize for any inconvenience and thank you for your understanding.

67,14 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
(DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

Versatile multi -talent

Offgridtec switching stations enable you to operate 230V consumers from two different voltage sources. Typically, this is a voltage converter or the public power grid

With the priority circuit, you can determine which power source should be used preferentially - this voltage source is eliminated to the replacement current source.

The use of the highest quality relay guarantees on the one hand a particularly precise switching threshold, on the other hand, your voltage converter is optimally protected from feedback from external tension.

Recommendations

Solar island systems

Service and commercial vehicles

Mobile and caravans

Sailing boats and other watercraft

Technical specifications

Input voltage: 230VAC, 50/60Hz

Input current (max.): 12a

Output voltage: 230VAC, 50/60Hz

Performance (max.): 2700VA

Switching time: 1-2 seconds li>

Fuse: F 15A / 250V

Protection: overload, short circuit

Housing: plastic

Protection class: IP55

Inputs: screw terminals

Dimensions: (LXBXH): 120 x 120 x 58mm

Weight: 250g

Application example 1-network preliminary circuit

The 230 V AC network is connected to the input AC2 (higher priority)

This means that the battery is spared and the inverter is also protected from external tension.

Only when AC2 turns off that does the input AC1 switch to the power supply via battery and inverter

Application example 2-Inverter preliminary circuit

The inverter is connected to the input AC2 (higher priority)

This means that the electricity is primarily taken from the battery by the inverter (e.g. when using solar island systems)

The 230 V AC network is only switched on via the AC1 input

Scope of delivery:

1x switching station, grounding clamp, operating instructions, DE, GB, FR, NL, NL

Item weight:

0,45 kg
