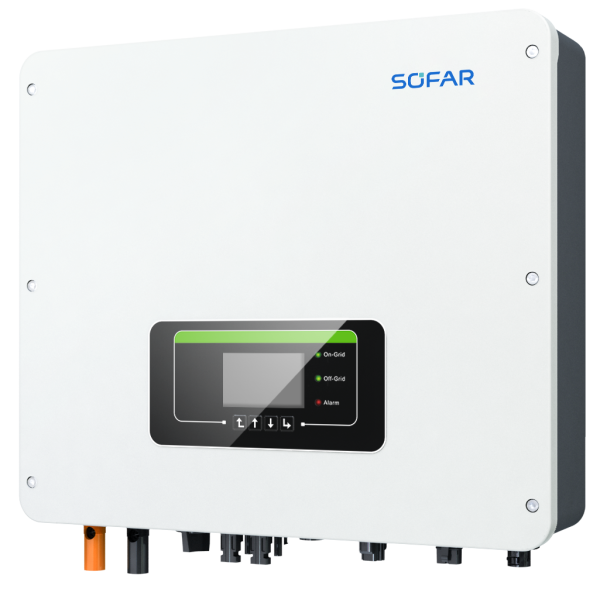

Sofar Solar HYD 20KTL-3PH 3-phase hybrid inverter. Smart meter included.

SKU: HYD 20KTL-3PH
GTIN: 4262464544599
Manufacturers: Sofar Solar

Due to illness, our customer service hotline is currently unavailable. All orders and inquiries will be processed as quickly as usual.

1.598,99 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Shipping in 2-5 business days, by freight forwarder (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

The three-phase SofarSolar HYD is a hybrid inverter that combines solar and battery inverters, energy management and system monitoring in one device. The inverter complies with all standards and specifications required for German operation.

Energy meter included!

Features:

2 MPP trackers

Compatible with Pylontech high-voltage batteries e.g. Force H2. Due to the voltage requirements under full load, the Force H2 should be used with 10.66 or 14.21 kWh.

Easy monitoring via monitoring app

5 years manufacturer's warranty

3-phase smart meter and DC disconnector included.

Emergency power function with 100% output

Configurable zero feed mode

Battery parameters:

Battery type: Li-ion and lead-acid batteries

Number of battery rings: 2

Battery voltage: 180 V - 800 V

Battery voltage range at full load: 400 V - 800 V

Nominal charging / discharging power: 20000 W

Nominal charging / discharging current: 50A (25A/25A)

Peak charging / discharging current (duration): 70A (35A/35A)/ 60 sec.

Charging strategy: self-adaptation to BMS

Communication interface: CAN (RS485)

2 MPPT inputs, more flexible configuration Two MPPTs and two independent battery connections (for the 10K to 20KTL models) enable different battery capacity configurations in steps of 2.5 kWh. Multiple parallel systems, more flexible system solutions Up to 10 inverters can be connected in parallel to the EPS and AC connection, making this device ideal for microgrid installations (grid-connected or off-grid). Various operating modes availableThe integrated energy management system features various user-friendly modes that optimize the user experience, including an automatic self-consumption mode. The user can also set different time and/or date ranges or day of the week rules. All modes can be easily configured on the large LCD screen. This inverter is compatible with SofarSolar's own high-voltage battery AMASS Store (GTX 3000-H), among others.
The inverter is supplied with a WiFi stick that can be used to easily connect the inverter to the Sofar monitoring portal.

Shipping weight:

46,00 kg
Item weight:

37,00 kg

Manufacturer
Name: Sofar Solar
