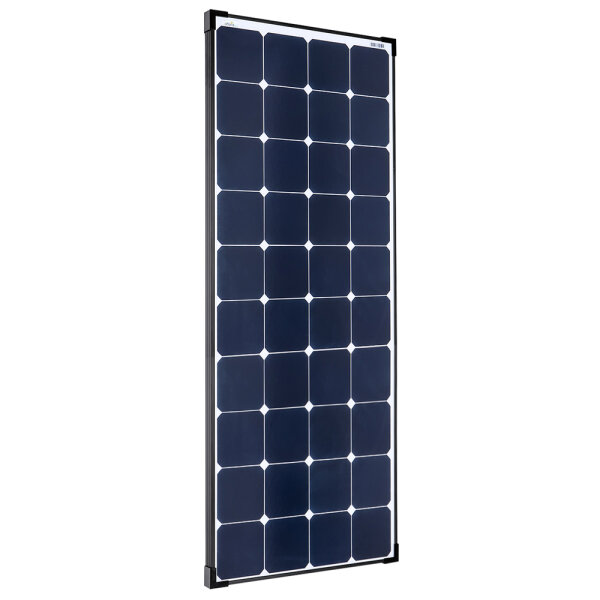

Offgridtec SPR-150 150W 44V High-End Solar Panel

SKU: 3-01-001525
GTIN: 4250983241259
Manufacturers: Offgridtec

Due to illness, our customer service hotline is currently unavailable. All orders and inquiries will be processed as quickly as usual.

174,90 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Shipping in 2-5 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

Monocrystallines 150W high-performance solar panel with sunpower high-power solar cells contacted on the back. Here the world's best solar cells and the new back contact process meet. The result is a high-end product at a solid price. Suitable for 12V and 24V systems (12V only in connection with a suitable MPPT loader).

Important properties

Module efficiency of over 24%
Monocrystalline high-power solar cells
Contacted the back (Back Contact)
Black aluminum frame (black frame)
Extremely resistant
44V module voltage
Integrated bypass diodes
Ideal for motorhomes, boats/yachts and small areas
Noble optics
Low weight

In the production of our modules, only monocrystalline SunPower solar cells of the highest quality level are processed. In contrast to the conventional solar modules, the cells are connected to each other on the back (back contact), which increases the cell efficiency and ensures a noble look.

The module has a black frame made of aluminum and has a specially hardened ESG solar glass.

The connection cables are 80 cm long and equipped with MC4 plugs.

Technical specifications

Performance (pmax): 150W

Tension (VMP): 44V

Max. Electricity (IMP): 3.41a

Idle span (VOC): 51.79V

Short circuit current (ISC): 3.69a

Max. System voltage: 600 V/DC

Cell efficiency:> 24%

Customs: -40 ...+85 ° C

Dimensions: 1320 x 550 x 35 mm

Weight: 9.37 kg

data sheet

Generator performance WP	150 WP
Solar module - cable length	0.8 m
Solar module - plug -in type	MC4
Solar module - format holes	9 x 1
System voltage	12V / 24V
Solar module - connection box (K. Max.)	n. v.
Max. System voltage	600 V/DC
Cell efficiency	>24%
Module voltage (VMP)	44 V
Max. Electricity (IMP)	3.41 a
Idle voltage (VOC)	51.79 V
Short circuit current (ISC)	3.69 a
Solar module - size connection cable	4 - 6 mm
Solar module - number of cable input	n. v.
Cell type	monocrystalline
Ambient temperature	-40 ° C - +85 ° C
Manufacturer	Offgridtec
tolerance	+/- 3%
guarantee	5 years
Product type 1	Solar module
Solar module - terminal standard	n. v.
Solar module - cell type	Spr Monocrystalline
Solar module - installed diodes	2x iOSQO50 bypass diode
Solar module - frame strength	1 mm
Solar module - connection box (ABM)	100 x 77.5 x 25mm
Solar module - connection box (IP)	IP65
Solar module - connection terminal	n. v.
Dimensions	1320 x 550 x 35 mm

Shipping weight:

10,50 kg
Item weight:

10,00 kg
