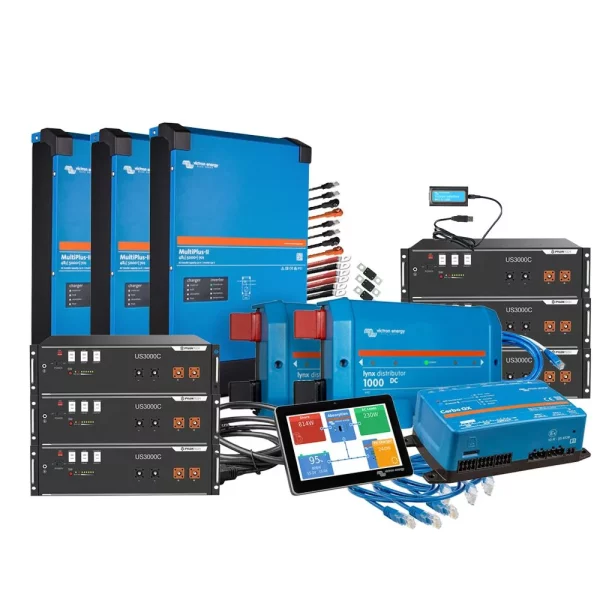

Offgridtec 3-phase backup kit with Pylontech US3000C Victron MultiPlus-II 48/5000 14 kWh battery

SKU: 4-01-015805-002
GTIN: 4262397631434
Manufacturers: Offgridtec

Speicherkapazität

5.039,00 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Shipping in 2-5 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

Offgridtec backup kit 3-phase 7kWh or 14kWh or 21 kWh with Pylontech US3000C battery Victron MultiPlus II 48/5000
The backup systems from Offgridtec are ideal for emergency power supply or for expanding an existing solar system. The systems include lithium-ion batteries from Pylontech, a matching MultiPlus II inverter and a Cerbo GX MK2 for system monitoring from Victron Energy. This allows you to secure your energy supply even in the event of a power failure.

Thanks to the UPS function, the MultiPlus remains switched on even in the event of a mains failure and takes over the supply to the connected loads. The switchover happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices can be guaranteed.

Application areas of the Offgridtec backup kit:
Emergency power supply
Off-grid solar systems (stand-alone systems)
Back-up of existing PV systems
Grid-connected power supply
UPS systems

Parts list:
Pylontech US3000C 3.5kWh LiFePO4 battery (depending on selection 2x, 4x or 6x)
3x Victron MultiPlus-II 48/5000/70-50 230V device
;combination
2xVictron Lynx Distributor
1x Victron Cerbo GX MK2 control panel
1x Victron GX Touch 50 display panel für Cerbo GX
1x Victron MK3-USB Ve.Bus to USB Interface
1x 1,8m VE.Can to Can-Bus BMS type A cable
2x 0,9m Victron RJ45 UTP cable
1x 3m Victron RJ45 UTP cable
3x 1m Offgridtec battery cable 50mm² M8-Ösen
3x 5pcs MEGA fuse set 200A 70V
Pylontech battery connection cable set (1x or 2x depending on selection)

Extended use of your backup system:
In order to be able to set up an ESS (Energy Storage System) with the backup system, one energy meter with connection cable is required (Victron VM-3P75CT Energy Meter 3-phase power meter 75A/phase and one energy meter 75A/phase);meter 75A/phase and a5m Victron RJ45 UTP cable)
With a power meter you can carry out a grid-parallel installation and then monitor your energy consumption and control your energy costs. Thanks to phase compensation, you can also operate the 3-phase meter for single-phase systems. This means that seamless integration of decentralized energy sources and consumers into the existing power grid is no problem.

In order for an ESS to be taken into account in the pre-configuration, the meter must be purchased in advance or for the system!

The storage solution - Pylontech US3000C batteries
The US3000C storage battery is a lithium battery of the latest generation. It has been specially designed to meet the high demands placed on backup storage systems. Thanks to state-of-the-art technology, maximum safety and a long service life are guaranteed even with regular deep discharges.

Extremely cycle-proof - over 6000 cycles at 95% DoD
Absolutely intrinsically safe lithium technology
High charging and discharging performance possible
;possible
Integrated BMS
Very high storage density - low weight and compact design
Absolutely maintenance-free and durable
Pre-charge function to protect the ESS system from overvoltage function

The electronic core - the Victron Multiplus-II device combination:
The Multiplus-II 48/5000/70-50 is a high-end device combination from Victron Energy that combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and PowerAssist functions to 100 A and extends the potential range of use to ESS applications. The inverter module delivers a full 5000 W with a non-linear load and 4000 W with a linear continuous load. The 48 V battery charger is also very well proportioned with 70 A charging power and is supplemented by a 50 A transfer switch, which can be used to switch back and forth between the AC connections at lightning speed.

Important performance features of the Multiplus-II 48/5000/70-50:
PowerControl and PowerAssist -increase of mains or generator power
built-in anti-islanding function and connection option for external current sensor (optional)
can be used as a backup device in grid-connected systems;can be used as a backup device in grid-connected systems for power supply in the event of grid failures
can be used in various ESS (Energy Storage System) applications
best suited for professional seafaring, yachts, vehicles and land-based, off-grid applications
VE.Bus interface for parallel and three-phase operation, remote monitoring and system integration
practically unlimited power through parallel and three-phase operation
can be configured on site or remotely using VEConfigure software

Always enough power thanks to PowerControl and PowerAssist:
A maximum mains or generator current can be set on the MultiPlus-II 48/5000/70-50. The MultiPlus-II then takes other connected AC consumers into account and only uses the current that is still "available" to charge the battery. This prevents the generator or mains connection from being overloaded (PowerControl function). The PowerAssist function adds a new dimension to the PowerControl principle. Load peaks often only occur for a limited period of time. In such cases, the MultiPlus-II immediately compensates for insufficient generator, shore power or mains power with energy from the battery. If the load is reduced, i.e. consumers are switched off, the available energy can then be used to charge the batteries again.

Maximum flexibility thanks to two AC outputs:
The main output ensures uninterrupted operation. In the event of a mains failure or an interruption in the shore/generator power, the MultiPlus-II takes over the supply to the connected loads. The switchover takes place so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is guaranteed. The second output only supplies power if alternating current is available at the input of the MultiPlus-II. Consumers that are not allowed to discharge the battery, such as a water heater, can be connected to this output.

Remote configuration and monitoring:
Install a Color Control GX or other GX products to connect to the Internet. The operating data can be saved and viewed free of charge on our VRM (Victron Remote Management) website. If systems are connected to the Internet, they can be accessed remotely and settings can be changed.

The MultiPlus-II is delivered unconfigured as standard. You can find the configuration instructions for the system here in the download area. If you would like us to pre-configure the system, we can do this for you for an additional charge. To do this, place the "Offgridtec pre-configuration" item linked above in the shopping cart during the ordering process. In this case, shipping may take 3-5 working days longer until the configuration has been carried out.

Technical features
5000 W power with non-linear load 4000 W continuous load and 9000 W peak power
for 48 V battery voltage, 50 A transfer switch and 70 A battery charger
Output voltage: 230 VAC, frequency: 50 Hz
max. efficiency is 95%, protection class IP22

System monitoring with the Victron Cerbo GX MK2 and GX Toch display
With the Cerbo GX MK2 communication center, you can easily control and monitor your system. The flexible connection options maximize your system performance. Thanks to the Cerbo GX MK2, you can control your system from anywhere. With the GX Touch 50 display, you always have an overview of all your system parameters and can make changes quickly and easily.

Safety note: Only have this complete system installed and commissioned by a qualified electrician.
