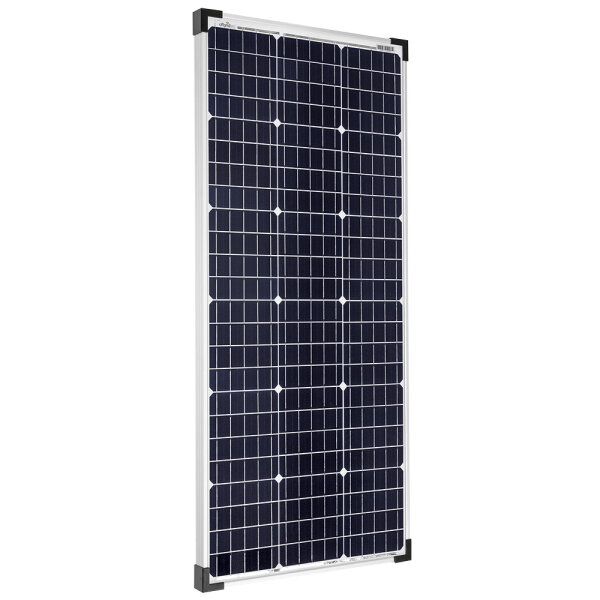

Offgridtec 100W 39V solar module monocrystalline

SKU: 3-01-010510
GTIN: 4250983254389
Manufacturers: Offgridtec

Due to illness, our customer service hotline is currently unavailable. All orders and inquiries will be processed as quickly as usual.

53,70 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Shipping in 1-3 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

The Offgridtec 100 W 39V delivers an output of 100 watts and is equipped with monocrystalline A-grade solar cells which deliver solid results even in poor lighting conditions. Ideal for 12V or 24V systems (12V only with MPPT charge controllers that can handle the high module voltage).
Offgridtec solar modules are exclusively equipped with cells of the highest quality grade and, thanks to state-of-the-art production, guarantee consistently high quality and performance with maximum service life.

Key features:
Power (Pmax): 100W
proven quality directly from Offgridtec
high operating voltage of 39.6V, perfect for 24V systems
can also be excellently integrated into 12V solar systems when using an MPPT charge controller
manufactured according to the latest standards
monocrystalline A-grade solar cells
cell structure with 5 busbars
extremely resistant ESG glass;The extremely durable ESG glass makes the module suitable for use even in the most adverse environmental conditions
ideal for 12V-24V systems on land or in mobile solar systems

Proven, ready-to-use solar module
The 100W 39V Mono is one of over 40 proven solar panels from the Offgridtec portfolio and benefits from Offgridtec's experience in the production of high-quality 12V and 24V solar cells. Thanks to the extremely resistant solar glass, the module can also be used in very adverse operating conditions. It can withstand storms or extreme cold and heat without any problems and thanks to the monocrystalline A-grade cells, you can expect significant yields even on cloudy days.

Technical data:
Power (Pmax): 100 watts
Voltage (Vmp): 39.6 V
Max. current (Imp): 2.53 A
Open-circuit voltage (Voc): 47.52 V
Short-circuit current (Isc): 2.73 A
Max. system voltage: 1000 V
. System voltage: 1000 V
Allowable ambient temperature: -40°C - +85°C
Cable length: 90 cm each
Dimensions: 520 x 1050 x 35 mm
Weight: 6.15 kg
Plug-in system MC4

Universally applicable
Offgridtec's 100W 39V (24V) Mono can be used universally, for example in 12/24 volt solar systems on garden sheds, allotments or for the power supply of lighting applications, self-sufficient systems for signal and monitoring technology and many more. But this panel also cuts a fine figure in mobile systems such as mobile home solar systems.

Scope of delivery:
1x Offgridtec 39V (24V) 100 W solar cell
