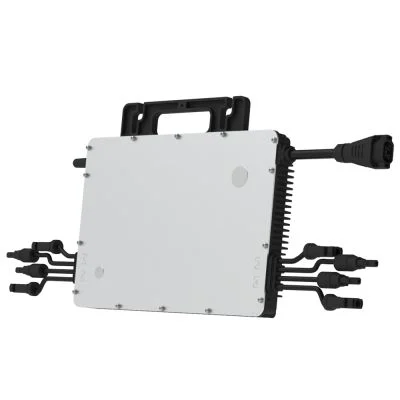

The HMS-1800 ofHoymiles is the perfect microwicator for your balcony power plant. The compact lightweight (only 4.7kg) is suitable for solar power production with up to four solar panels up to an output of 360 to 600+W. Just like all other Hymiles microw replacement, it is suitable for long operating hours and a wide PV module application, since its commissioning is very low (only 22V) and the DC input area of the operating voltage (16-60V) is extremely wide.
Compared to the previous model from the HM series the HMS-1800 offers more security for roof solar power plants through rapid shutdown and isolated transformer. The new SUB-1G radio solution enables more stable communication with the Hoymiles Gateway DTU.
Characteristics
- Minimizing the effects of e.g. shading, dust or aging by MPPT
- High quality energy generation with high MPPT accuracy
-
-
Optional: System monitoring via the smartphone app S-Miles Enduser or the S-Miles Cloud (Data transfer unit DTU is required)
-
- Optimal system reliability
- Top efficiency of 96.5%
- 12 years of product guarantee
- High security through integrated protective functions
- easy installation
- Long lifetime
- Corresponds to EN50549-1: 2019, VDE-AR-N 4105: 2018, VfR2019, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4, IEC/EN 61000 -3-2/-3
Optimal reliability
Micro inverter systems are naturally more reliable than conventional inverter. The decentralized structure of a microw interchangeable system ensures that the entire PV system does not fail if the entire PV system fails. Hymiles microving signpership are designed for operation with full performance at ambient temperatures of up to +65 ° C (150 ° F). The housing of the micro inverter is designed for the outer installation and corresponds to the type of protection IP67.
Easy construction
PV systems with hymiles microving substitrators are very easy to plan. You do not need to install cumbersome conventional inverter. Each microw replacement can be installed quickly on the PV installation tile or directly under the PV module. The PV module is connected to the microw interchangeable directly on site and eliminates the risk that people are exposed to dangerously high DC voltage.
Technical specifications
- Recommended module performance: up to 360W - 600+W (per module)
- Mppt voltage range: 16 ~ 60V
- Involving voltage: 22V
- Maximum input voltage: 65V
- Maximum input current: 4*13.3A
- Maximum input cocaral closure current: 4*20a
- Nominal output performance: 1800VA
- Nominal output current: 7.83a
- Nominal output voltage / range: 230V / 180-275V
- CEC top efficiency: 96.50%
- Ambient temperature range: -40 ~+65 ° C
- Dimensions (BXHXT): 331 x 218 x 36.6 mm
- Weight: 4.7kg
- Housing classification: IP67
Scope of delivery:
1x Hoymiles HMS-1800 microwores
