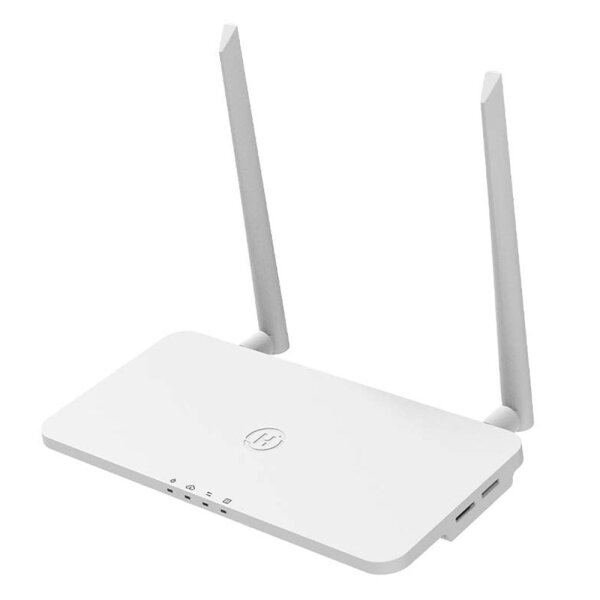

Hoymiles DTU Pro WLAN Data Transmission Unit Data Logger for HM

SKU: DTU-PRO
GTIN: 4260737987739
Manufacturers: Hoymiles

210,00 €

Incl. 0% VAT for orders according to §12 Abs. 3 UStG, only for DE

249,90 €

incl. 19% VAT

plus (Applies to both prices)

Manufacturers recommended retail price: 259,00 €

(Save 3.51%, i.e. 9,10 €)

Choose tax zone / country of delivery

Currently out of stock

Arrange a consultation now

OR ORDER DIRECTLY

Notify me when this item is available

E-Mail

This data transmission unit is exclusively In combination with the hymiles HM-XXX inverters to use.
We set up the required user account only for systems that have been purchased from us.

The Hoymiles Gateway DTU-Pro is a data transmission unit that collects information and data from PV-Mikro interverters via a 2.4 GHz radio solution and via various communication options such as Ethernet or WLAN to the S-Miles Cloud, the Hoymiles surveillance platform, sends.

Characteristics

Stable communication with micro interrichts of the HM series
Supports RS485, Einertet port for communication with peripheral devices
Monitoring and data storage at the module level
Local configuration with S-Miles Toolkit
Support from Fern-O & M, including remote upgrade and parameter setting
Intelligent nullexport control and performance export limitation
Monitoring of the PV generation and load consumption

functionality

The DTU-Pro data transfer unit has a surveillance capacity for up to 99 solar modules. As a result, the system is also suitable for more complex PV systems. The data and alarms can read the users easily and quickly at the module level. Long-distance operation, as well as the remote maintenance of the PV system, can be made comfortably via the Hymiles S-Miles Cloud at any time and from any location.

S-Miles Accoco

The S-Mile account can only be created via the DTUS dealer.

Technical specifications

Signal Cloud Communication: WLAN / Ethernet
Subsarias: every 15 minutes
Signal inverter communication: 2.4 GHz own HF (Nordic)
Max. Distance (outdoor area): 200m
Limitation monitoring data: up to 99 solar modules (depending on the installation environment)
Show 4 LED
Power supply input voltage/frequency: 100 V/AC - 240 V/AC/50 or 60 Hz
Power supply output voltage / current: 5V / 2A
Performance recording: 2.5W (typical), 5W (max.)
Ambient temperature range: -20 ° C - +55 ° C
Dimensions: 200 x 101 x 29 mm (without antennas)
Weight: 0.28 kg
Assembly options: wall / table assembly
Scope of delivery:

1x Hoymiles DTU-Pro data transmission unit

Shipping weight:

0,40 kg
Item weight:

0,28 kg

Manufacturer
Name: Hoymiles
Street: High Tech Campus 9, Unit BK3.28
ZIP-Code, City: 5656AE Eindhoven
Country: Niederlande
Email: service.nl@hoymiles.com
