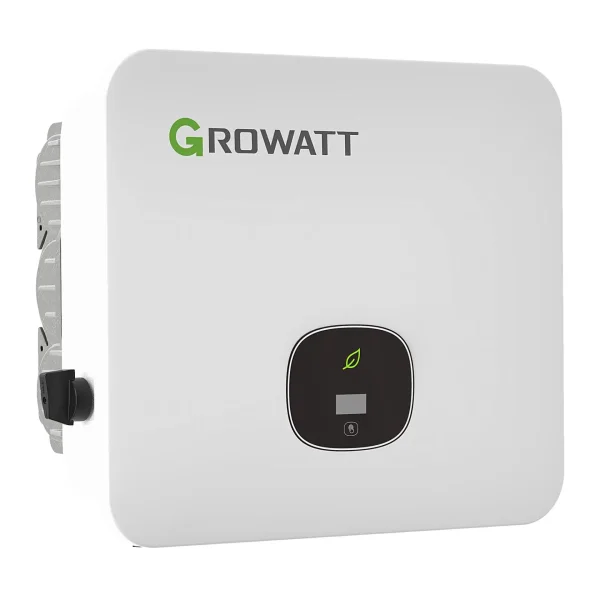

The Growatt MOD 9000KTL3-HU 9 kW is a 3-phase hybrid inverter for PV and storage systems. With a rated AC power of 9,000 W, up to 18,000 W of PV power, and two independent MPP trackers, it is suitable for high-power three-phase systems. The inverter is “Battery Ready” for a compatible Growatt APX HV battery system with BMS P2 and features an integrated backup function.
9 kW hybrid inverter for PV and energy storage systems
9,000 W AC rated power
Up to 18,000 W PV power
2 independent MPP trackers
MPPT voltage range: 140–1,000 V
Battery Ready for Growatt APX HV with BMS P2
Up to 15,000 W battery charging power
Up to 9,000 W battery discharge power
Integrated backup function without a separate backup box
Maximum efficiency: 98.6%
Export limitation supported
Type II surge protection on the AC and DC sides
IP66 protection rating
Two MPP trackers for flexible PV configuration
The MOD 9000KTL3-HU features two independent MPP trackers and supports a PV power output of up to 18,000 W. This allows, for example, PV strings with different orientations to be controlled separately. The MPPT voltage range is from 140 to 1,000 V, with a maximum input current of 20 A per MPP tracker.
Battery Ready for Growatt APX HV
For integrating a battery storage system, the inverter is compatible with the Growatt APX HV battery system featuring BMS P2. The battery operating voltage range is 600 to 980 V. Up to 15,000 W of charging power and 9,000 W of discharging power are available.
Integrated Backup Function
The backup function is already integrated into the inverter, so no separate backup box is required for the intended emergency power operation. If the overall system is configured appropriately, it can switch to the backup supply in the event of a grid outage. The available power depends on the battery, the loads, and the design of the overall system.
Monitoring and System Integration
The inverter can be integrated into the Growatt monitoring environment and supports export limitation. Depending on the desired monitoring solution, appropriate Growatt accessories such as the ShineWiLan-X2 can be used for communication. System configuration is also supported via ShineTools with “Quick Site Setup.”
Technical Specifications
PV Input
Maximum PV power: 18,000 W
Number of MPP trackers: 2
Maximum input voltage: 1,000 V
Start voltage: 160 V
MPPT voltage range: 140–1,000 V
Maximum input current per MPPT: 20 A
Maximum short-circuit current per MPPT: 25 A
Battery
Compatible battery system: Growatt APX HV with BMS P2
Battery operating voltage range: 600–980 V
Maximum battery operating current: 25 A
Maximum battery charging power: 15,000 W
Maximum battery discharge power: 9,000 W
AC Output
Mains connection: 3-phase
AC rated power: 9,000 W
AC rated voltage: 220/380 V or 230/400 V
Mains frequency: 50/60 Hz
Maximum AC output current: 15 A
Maximum efficiency: 98.6%
General
Backup function: built-in
Export limitation: supported
AFCI: optional
Surge protection: Type II, AC and DC sides
Protection rating: IP66
Operating temperature: -25 to +60 °C
Dimensions: 468 × 408 × 202 mm
Weight: 19 kg
Package Contents
1 × Growatt MOD 9000KTL3-HU 9 kW hybrid inverter, 3-phase
