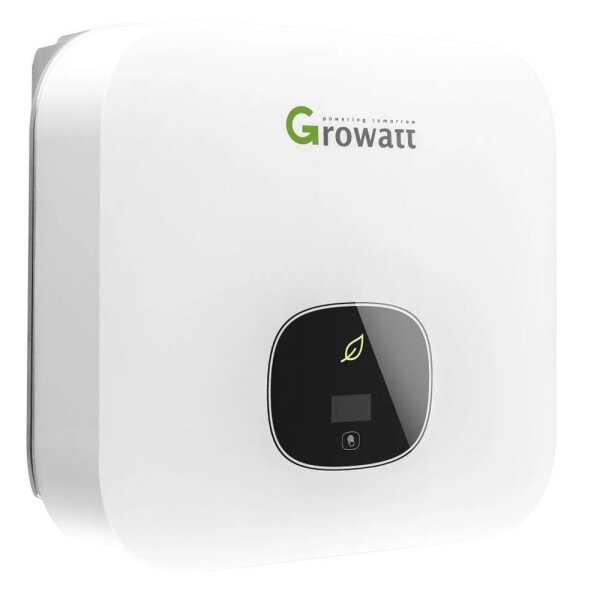

The Growatt MIN 3600TL-XH2 (MPN: MIN3600 TL-XH2) is a compact, single-phase PV inverter with a rated AC output of 3600 W for grid-connected photovoltaic systems. With two independent MPP trackers, a recommended maximum PV power of 7,200 W, and up to 16 A of input current per MPPT, it provides a flexible foundation for modern solar systems. At the same time, the XH2 series is already prepared for the integration of a compatible high-voltage battery storage system, thereby enabling future expansion of the energy system. With an IP66 rating, integrated protection functions, and a wide operating temperature range, the device is designed for suitable installation locations.
Flexible PV and storage connection with two MPPT channels
3,600 W AC rated power for single-phase PV systems
Recommended PV power up to 7,200 W
2 independent MPP trackers, each with one string
Prepared for high-voltage battery storage
IP66 rating for high protection against dust and water
Natural convection cooling without active fan cooling
OLED display and LED indicator
Integrated RS485 and USB
Optional monitoring via Wi-Fi, GPRS, 4G, LAN, or RF
Type II DC surge protection
Comprehensive built-in protection features
Two MPP trackers for different PV strings
The inverter operates with two independent MPPTs, each with one string input. A Maximum Power Point Tracker continuously adjusts the electrical operating point of the connected solar modules to ensure that an optimal power point is utilized within the respective operating conditions. Two separate trackers are particularly helpful for PV strings with different orientations or operating characteristics, as both inputs can be controlled independently. For the 3600 W model, Growatt specifies a maximum recommended PV generator capacity of 7200 W. However, when designing the specific string configuration, all voltage and current limits of the inverter, as well as the electrical characteristics of the solar modules used, must be taken into account.
Backup Function with an Additional System Component
The XH2 series supports a configurable backup mode. It is important to note that additional system components are required for an actual backup power supply. For this, you need a battery as well as a Backup Box or SYN. The inverter alone therefore does not constitute a complete backup power solution. When combined with the appropriate system configuration, the backup function can be used to supply designated loads in the event of a power outage.
Monitoring, Communication, and Future Storage Expansion
An OLED display and an LED status indicator are available for monitoring directly on the inverter. RS485 and USB are integrated as communication interfaces. Wi-Fi, GPRS, 4G, LAN, and RF are optional communication options. Additional optional accessories include the ShineWiLan-X2, ShineLink-X2, Shine4G-X, and the GroHomeManager-X, among others. The USB-A port can also be used for compatible monitoring devices and firmware updates. For energy management, the inverter also supports feed-in limitation functions in conjunction with a suitable smart meter or current transformer. For battery operation, there are three operating modes: Grid Priority, Battery Priority, and Load Priority. In addition, the battery’s grid charging function can be enabled or disabled. This allows the interaction between solar power, consumption, battery storage, and the public grid to be adapted to the specific system configuration.
Protection Functions and Passive Cooling
The inverter features several integrated protection and monitoring functions. These include:
Reverse polarity protection on the DC side
Insulation resistance monitoring
AC short-circuit protection
Ground fault monitoring
Grid monitoring
Anti-islanding protection
Residual current monitoring
AFCI depending on model or configuration
On the AC and DC sides—Type II surge protection
Heat dissipation occurs via natural convection. An active fan cooling system is therefore not required. Growatt specifies a typical noise level of no more than 25 dB(A). The IP66 enclosure protects the device against dust and powerful water jets. For actual installation, however, the guidelines described in the manual regarding the installation location and protection against direct sunlight, rain, and snow must be followed.
Technical Specifications
AC Rated Power: 3600 W
AC Rated Apparent Power: 3,600 VA
AC rated voltage: 230 V
AC voltage range: 160–276 V
AC line frequency: 50/60 Hz
Max. AC output current: 16 A
Max. recommended PV power: 7,200 W
Max. PV input voltage: 550 V
Start voltage: 50 V
PV rated voltage: 360 V
MPPT voltage range: 40–540 V
MPPT range at full power: 115–500 V
Number of MPP trackers: 2
Strings per MPP tracker: 1
Max. input current per MPPT: 16 A
Max. short-circuit current per MPPT: 24 A
Battery operating voltage range: 360–500 V
Max. battery operating current: 17 A
Max. charging power: 6000 W
Max. discharge power: 3,600 W
Compatible battery: APX 5.0-30.0P-S0 / APX 5.0-30.0P-S3
Max. backup apparent power: 3,600 VA
Rated backup voltage: 230 V
Max. efficiency: 98.2%
European efficiency: 97.2%
MPPT efficiency: 99.9%
Cooling: natural convection
Protection rating: IP66
Operating temperature: -30 to +60 °C
Relative humidity: 0–100%
Weight: 10.8 kg
Dimensions (W × H × D): 375 × 350 × 160 mm
Package Contents
1x Growatt MIN 3600TL-XH2 inverter
1x Mounting bracket
1x Quick Guide
2x signal connectors
3x self-tapping screws
1x Phillips-head combination screw with washer and spring washer
3x plastic anchors
2x PV+/PV− connectors
2x PV+/PV− metal contacts
2x BAT+/BAT− connectors
2x BAT+/BAT− metal contacts
1x AC connector
1x tool for disconnecting the signal or AC connector
1x tool for disconnecting the PV or battery connectors
