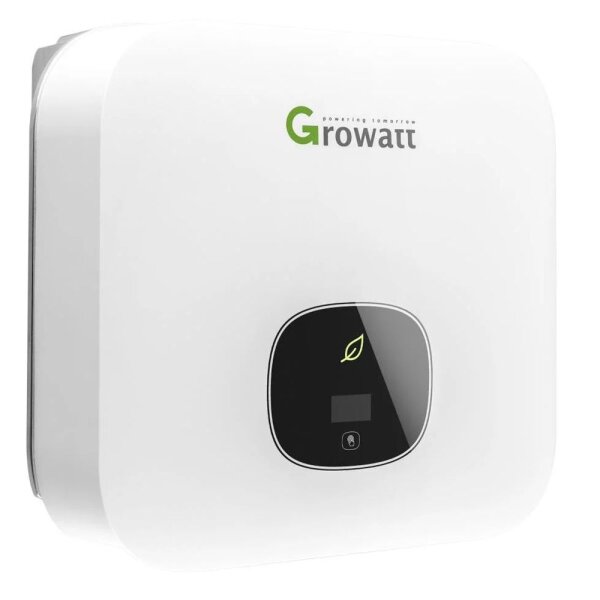

The Growatt MIN 2500TL-XH2 (MPN: MIN2500 TL-XH2) is a single-phase inverter with a rated AC power of 2500 W for grid-connected photovoltaic systems with an optional battery storage connection. Two independent MPP trackers, a maximum recommended PV power of 5,000 W, and an input current of up to 16 A per MPPT enable flexible solar system design. For battery integration, the unit features a high-voltage battery connection with an operating voltage range of 360 to 500 V. Compatible Growatt APX battery systems are suitable for this purpose. Its transformerless design with natural convection cooling eliminates the need for active fan cooling. With an IP66 rating, integrated protection functions, and a wide operating temperature range, the device is designed for appropriately suitable installation locations.
Flexible PV and storage connection with two MPPT
2,500 W AC rated power for single-phase 230 V grids
Recommended PV power of up to 5,000 W at STC
2 independent MPP trackers, each with one PV string
High-voltage battery connection with 360–500 V operating voltage
IP66 enclosure and natural convection cooling
OLED display with LED status indicator directly on the device
Integrated RS485 and USB; additional monitoring interfaces available as options
Type II surge protection on the DC and AC sides
Two MPP trackers for different PV strings
The inverter operates with two independent MPPTs, each with one string input. A Maximum Power Point Tracker continuously adjusts the electrical operating point of the connected solar modules to ensure that a suitable power point is utilized within the respective operating conditions. Two separate trackers are particularly helpful for PV strings with different orientations or operating characteristics, as both inputs can be controlled independently. With a maximum recommended PV generator power of 5000 W, the connected module power may exceed the AC rated power of 2500 W. However, when designing the specific string configuration, all voltage and current limits of the inverter, as well as the electrical characteristics of the solar modules used, must be taken into account.
Backup Function with an Additional System Component
The XH2 series supports a configurable backup mode. It is important to note that additional system components are required for an actual backup power supply. For this, you need a battery as well as a backup box or SYN. The inverter alone therefore does not constitute a complete backup power solution. When combined with the appropriate system configuration, the backup function can be used to supply designated loads in the event of a grid outage.
Monitoring and Communication
Operating information can be viewed directly on the integrated OLED display and via the LED indicators. RS485 and USB are integrated for communication and monitoring. Additional optional communication options include Wi-Fi, GPRS, 4G, LAN, and RF. Additional optional accessories include, among others, the ShineWiLan-X2, ShineLink-X2, Shine4G-X, and the GroHomeManager-X. Corresponding communication devices can be connected via the USB-A port; this port is also intended for firmware updates. For power control and energy flow measurement, the series also supports the connection of a compatible smart meter or current transformer.
Protection Features and Passive Cooling
The inverter features several built-in protection and monitoring functions. These include:
Reverse polarity protection on the DC side
Insulation resistance monitoring
AC short-circuit protection
Ground fault monitoring
Grid monitoring
Anti-islanding protection
Residual current monitoring
On the AC and DC sides—Type II surge protection
Heat dissipation occurs via natural convection. An active fan cooling system is therefore not required. Growatt specifies a typical noise level of no more than 25 dB(A). The IP66 enclosure protects the unit against dust and high-pressure water jets. For actual installation, however, the guidelines described in the manual regarding the installation location and protection against direct sunlight, rain, and snow must be followed.
Technical Specifications
AC Rated Power: 2500 W
AC rated apparent power: 2500 VA
AC rated voltage: 230 V
AC voltage range: 160–276 V
AC line frequency: 50/60 Hz
Max. AC output current: 11.3 A
Max. recommended PV power: 5,000 W
Max. PV input voltage: 500 V
Start voltage: 50 V
PV nominal voltage: 360 V
MPPT voltage range: 40–490 V
MPPT range at full power: 80–450 V
Number of MPP trackers: 2
Strings per MPP tracker: 1
Max. input current per MPPT: 16 A
Max. short-circuit current per MPPT: 24 A
Battery operating voltage range: 360–500 V
Max. battery operating current: 17 A
Max. charging power: 6000 W
Max. discharge power: 2,500 W
Compatible battery: APX 5.0-30.0P-S0 / APX 5.0-30.0P-S3
Max. backup apparent power: 2,500 VA
Rated backup voltage: 230 V
Max. efficiency: 98.2%
European efficiency: 97.1%
MPPT efficiency: 99.9%
Cooling: natural convection
Protection class: IP66
Operating temperature: -30 to +60 °C
Relative humidity: 0–100%
Weight: 10.8 kg
Dimensions (W × H × D): 375 × 350 × 160 mm
Package Contents
1x Growatt MIN 2500TL-XH2 inverter
1x Mounting bracket
1x Quick Guide
2x signal connectors
3x self-tapping screws
1x Phillips-head combination screw with washer and spring washer
3x plastic anchors
PV+/PV− connectors
BAT+/BAT− connector
1x AC connector
1x tool for disconnecting the signal or AC connector
1x tool for disconnecting the PV or battery connectors
