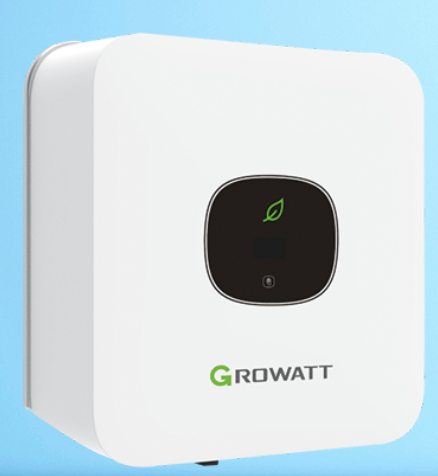

The Growatt MIC 800TL-X2 (MPN: MIC 800TL-X2) is a compact grid-tied inverter for single-phase PV systems. With a rated AC power output of 800 W, an MPP tracker for one PV string, and a recommended PV power of up to 1200 W, this model is suitable for appropriately sized grid-connected PV systems. The maximum PV input current is 16 A, while the MPPT voltage range extends from 50 to 500 V. An OLED display, touch button, and various communication options are available for operation and system monitoring.
Compact 800 W string inverter with 16 A PV input
800 W AC rated power for single-phase grid feed-in
Up to 1,200 W recommended PV power
1 MPP tracker with 1 PV string input
OLED display with touch button for local display and operation
Integrated RS485; additional monitoring interfaces available as options
IP66 protection rating against dust and powerful water jets
Passive cooling via natural convection
Comprehensive integrated protection and monitoring functions
One MPP tracker for one PV string
The inverter features an MPP tracker and a PV string input. The MPP tracker (Maximum Power Point Tracker) adjusts the electrical operating point of the connected solar modules during operation so that the available PV power can be utilized within the permissible operating range. For this model variant, Growatt specifies a maximum recommended PV power of 1200 W.
OLED Display, Touch Controls, and Monitoring
The device overview shows an OLED display, an LED status indicator, and a touch button on the front panel. The touch-sensitive button can be used to switch between display screens and to confirm selections and settings. The status indicator signals various operating states, such as normal operation, warning, or error. The connections for PV, AC, DRM, communication, and USB are located on the bottom of the device. RS485 is integrated for communication. Additionally, USB, Wi-Fi, RF, and LAN can be used as available or optional interfaces. OLED, LED, Wi-Fi, and an app are also available as display and monitoring options. These include the optional monitoring devices ShineWiFi-X, Shine4G-X, ShineLink-X, and ShineLAN-X.
Protection Features for Grid Operation
Growatt equips the MIC-X2 series with several integrated protection and monitoring functions. These include:
DC reverse polarity protection
DC switch
Type III AC/DC overvoltage protection
Insulation resistance monitoring
AC short-circuit protection
Ground Fault Monitoring
Grid monitoring
Anti-islanding protection and residual current monitoring
AFCI—an optional protection feature on the EU model
Anti-islanding protection prevents the grid-connected inverter from independently maintaining an off-grid system in the event of a failure in the public power grid. The MIC 800TL-X2 is therefore designed as a grid-connected inverter and not as an off-grid or backup power inverter.
Technical Specifications
Rated AC power: 800 W
Maximum AC apparent power: 800 VA
Phases: 1-phase
Max. recommended PV power: 1200 W
Max. DC input voltage: 500 V
Start voltage: 50 V
Rated input voltage: 120 V
MPPT voltage range: 50–500 V
Number of MPP trackers: 1
PV strings per MPP tracker: 1
Max. input current per MPP tracker: 16 A
Max. short-circuit current per MPP tracker: 24 A
AC rated voltage: 230 V
AC line frequency: 50/60 Hz
Max. output current: 3.8 A
AC mains connection: single-phase
Max. efficiency: 97.4%
European efficiency: 96.5%
Cooling: natural convection
Protection rating: IP66
Operating temperature: -30 to +60 °C
Relative humidity: 0–100%
Weight: 6 kg
Dimensions: 274 x 254 x 138 mm
Package Contents
1x Growatt MIC 800TL-X2 inverter
1x mounting bracket
1x Signal connector
1x DRM port for Australia or the EU
3x self-tapping screws
2x safety screws
3x plastic expansion anchors
1x PV positive connection
1x PV negative connector
1x AC connector
1x installation and AC connection tool
