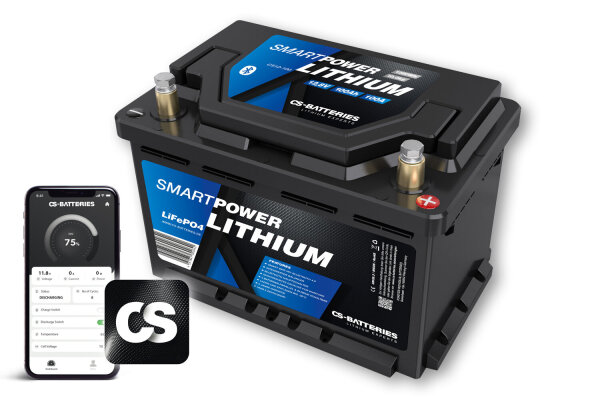

Forster CS 100Ah | 12.8V | 1280Wh | SMART POWER Lithium LiFePO4 battery with Bluetooth 4.0 | integrated 100A-200A BMS-2.1

SKU: CS12-100
GTIN: 4251847302642
Manufacturers: FORSTER INDIVIDUAL BATTERIES

Due to illness, our customer service hotline is currently unavailable. All orders and inquiries will be processed as quickly as usual.

366,20 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

(Save 25.27%, i.e. 123,8 €)

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Shipping in 1-3 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

CS 100Ah | 12.8V | 1280Wh | SMART POWER Lithium LiFePO4 battery with Bluetooth 4.0 | integrated 100A-200A BMS - replaces 200Ah lead
Universal, strong, inexpensive.
With our new 100Ah SMART Power battery High-quality 100Ah Prismatic LiFePO4 Smart cells, we offer you a LiFePo4 lithium supply battery at a smart price. Developed and suitable for motorhomes, panel vans, caravans, boats, fishing or energy storage.

TOP FEATURES:
High-quality 100Ah Prismatic LiFePO4 Smart cells
SMART Power BMS-2.1 with Bluetooth 5.0
Integrated cell balancer
Bolted housing for servicing
4 batteries can be connected in parallel and in series
On/off switch via app
5000 cycles
Handle according to DIN standard

Power Battery Management System:
The newly developed Power Battery Management System is based on the latest microcontroller technology. This monitors and protects your battery from damage in every application. The BMS is connected to each cell individually and monitors them permanently.

CS-Batteries app:
With the CS-Batteries app, you can access the battery management system installed in the battery directly via Bluetooth. This allows you to check the battery parameters and optimally plan your journey by displaying the remaining battery life.
The data can be conveniently displayed via a smartphone or tablet (Android / IOS).

5-year warranty
As the manufacturer, CS-BATTERIES offers a 5-year warranty on the battery advertised with the warranty promise.

Technical data:
279 x 175 x 190mm | 10,0kg | Pb-eq 200Ah | UN38.3
Capacität: 100Ah
Replaces lead-gel AGM battery: 200Ah
Nominal voltage: 12.8V
Energy content: 1280Wh
Operating voltage: 11.0 - 14.6V
Application Parallel connection: yes, max. 4 pieces of the same type!
Series connection application: yes, max. 4 batteries in series to 48V!
Cell technology: LiFePO4 / LFP
Cell type: Prismatic Smart Cells (PSC)
Charging programs: CC/CV | IU | IUoU | Lead-Säure
Final charge voltage: 14.4 - 14.6V
Maintain charge: 13.4V
Maximum charge current: 50A
Standard charge current: 25A
Max. discharge current / 3 sec.: 200A
Continuous discharge current: 100A
Battery cut-off: yes, via Bluetooth / APP
BMS battery management system: integrated
Remote monitoring via Bluetooth APP: yes, Bluetooth APP integrated
Remote monitoring/measurement shunt integrated: no
Protection class: IP52
Cycles / service life at 50% DoD: 5000
Cycles / service life at 80% DoD: 3500
Cycles / service life at 90% DoD: 3000
Charging temperature: 0°C to 50°C
Discharging temperature: -20°C to +60°C
Sens. Storage temperature: -20°C to +60°C
Automatic cell heating: none
Storage: 80 - 100% charged / when not in use, charge battery every 6 months
Self-discharge: 2-3% / month
Connection: car cone plus M8 screw connection
Plus terminal arrangement: front right
Dimensions (battery upright): 279 x 175 x 189 mm
Dimensions (battery horizontal): 279 x 189 x 175 mm
Installation position: any, upright, horizontal, upright
CANbus interface (removed): no
Weight: 10.0 kg
Warranty: 5 years
Certification: UN38.3 | MSDS | CE | RoHS | ECE-R10 | E1
