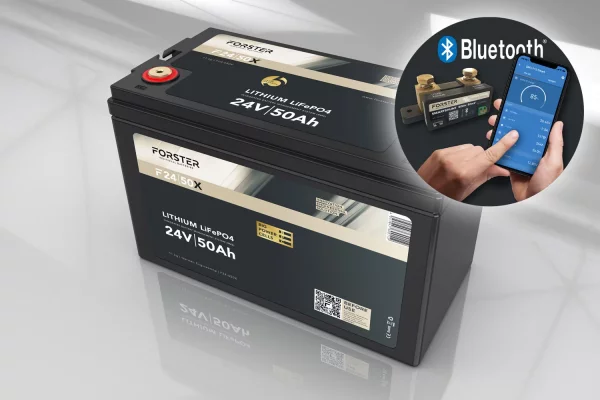

FORSTER 25.6V Lithium 50Ah LiFePO4 Premium Battery | 200A-BMS-2.0 | 500A Bluetooth Measurement Shunt | 1280Wh | IP67

SKU: F24-050XB
GTIN: 4251847300266
Manufacturers: FORSTER INDIVIDUAL BATTERIES

924,00 €

Incl. 0% VAT for orders according to §12 Abs. 3 UStG, only for DE

1.099,56 €

incl. 19% VAT

plus (Applies to both prices)

Manufacturers recommended retail price: 1.190,00 €

(Save 7.6%, i.e. 90,44 €)

Choose tax zone / country of delivery

Available immediately
Ships in 2 - 5 business days (Mon-Fri)

Arrange a consultation now

OR ORDER DIRECTLY

Lithium Premium series
Highest quality and reliability for almost all areas of application, whether caravan, marine or energy storage. The latest cell technology, optimized BMS 2.0 control and monitoring set the standard for maximum performance and service life. Optimal monitoring and control of
measurement and consumption values possible via measurement shunt and Bluetooth.
LiFePO4
Big Power Prismatic Cells (BPC)
In contrast to conventional batteries, which consist of many small cells
connected to each other, FORSTER relies on a few, larger battery cells.
The minus in complexity brings a plus in performance, service life and
safety.
Maximum space utilization
Few cell connectors
Lower weight
Fast assembly
High safety and service life
High reliability
200A high-load power battery management system (BMS)
A battery management system monitors and controls the individual cells
of a battery and protects them from damage. In addition, the BMS
controls the output power, which with our Power BMS is 200A continuous current
and 400A peak current.
Important functions of the BMS:
Overload protection
Deep discharge protection
Overvoltage protection
Active cell balancing
Complete charge control
Multi-Charge-Mode (MCM)
Temperature protection of the BMS
Short-circuit protection

E I N S AT Z : Caravans, motorhomes, marine, electric drive, solar and wind
generators. wind
generator storage, UPS power supply, energy storage

Data / Order no.:	F24-050X
EAN	4251847300112
Capacity	50Ah
Replaces lead-gel AGM battery	24V/100Ah
Nominal voltage	25.6V
Energy content	1280Wh
Operating voltage	21.0V - 29.2V
Application parallel circuit	Yes, any number of the same type possible in parallel!
Application series switching	yes, max. 48V
Cell technology	Lithium LiFePO4
Cell type	BPC Big-Prismatic-Power High Load Cells- GradeAA
Charging programs	CCCV / IU / IUoU / Lead-Säure
Final charge voltage	28.4 - 29.2V
Preservation charge	26.6 - 27.6V
Maximum charging current	50A
Recommended charging current	25A
Max. discharge current / 5 sec.	200A
Continuous discharge current	100A
Battery shutdown	21.0V
BMS Battery Management System	integrated
Remote monitoring	With 500A Bluetooth measuring shunt and free APP
Remote monitoring/measurement shunt integrated	F24-050XB
Protection class	IP67 (battery)
Cycles / service life at 50% DoD	>6000
Cycles / service life at 80% DoD	>4000
Cycles / service life at 90% DoD	>3000
Temperature during charging	0°C to +60°C / below 0°C the charging current is automatically reduced by "Cell-Frost-Control" in the BMS
Tem repair on discharge	-20°C to +60°C
Recommended storage temperature	-10°C to 30°C
Storage	80 - 100% charged / when not in use, charge battery every 6 months
Self-discharging	1 - 2% / month
Connection	M8
Plus pole arrangement	Front left
Endpolart	M8 internal thread
Preparation for shunt installation	n/a
Emergency stop switch built in	n/a
Maße	330 x 170 x 220 mm
Installation position	any, standing, lying, sideways, upright, upside down
CANbus interface	n/a
Weight	11.0kg
Guarantee	8 years
Certification	UN38.3 \| MSDS \| CE \| RoHS \| ECE-R10
