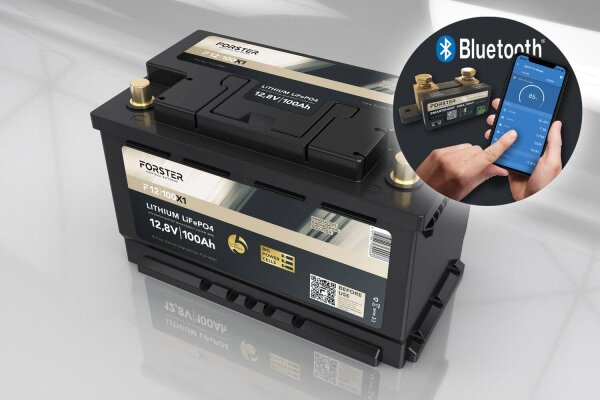

FORSTER 100Ah 12,8V Lithium LiFePO4 Premium Batterie 200A-BMS-2.1 500A Bluetooth Mess-Shunt Ducato Ford PSA 1280Wh IP67

SKU: F12-100XB2
GTIN: 4251847300709
Manufacturers: FORSTER INDIVIDUAL BATTERIES

924,00 €

Incl. 0% VAT for orders according to §12 Abs. 3 UStG, only for DE

1.099,56 €

incl. 19% VAT

plus (Applies to both prices)

Manufacturers recommended retail price: 1.190,00 €

(Save 7.6%, i.e. 90,44 €)

Choose tax zone / country of delivery

Available immediately
Ships in 2 - 5 business days (Mon-Fri)

Arrange a consultation now

OR ORDER DIRECTLY

Now with an 8-year warranty!

Highest quality and reliability for almost all areas of application, whether caravan, marine or energy storage. The latest cell technology, optimized BMS 2.0 control and monitoring set the standard for maximum performance and service life. Optimum monitoring and control of measurement and consumption values possible via measurement shunt and Bluetooth.

TOP features

100% usable capacity
With our premium battery series, 100% of the specified capacity can be used without damaging the battery. Conventional lithium batteries can often only be discharged to 92-95%.

Multi-Charge-Mode (MCM)
With Multi-Charge-Mode (MCM), you can continue to use 99% of the devices such as boosters, shore chargers or solar regulators. This saves you additional costs and preserves the manufacturer's warranty for new vehicles.

Bluetooth measuring shunt
Optional all our X-series batteries are available with a 500A Bluetooth measuring shunt to display the really exact charge level via APP.

Built-in complete protection / safety ﬁrst
The integrated, intelligent battery management system (BMS) protects the battery and ensures completely safe use.

Big Power Prismatic Cells (BPC)
In contrast to conventional batteries, which consist of many small interconnected cells, FORSTER relies on a few, larger battery cells. The minus in complexity brings a plus in performance, service life and safety.

Maximum space utilization
Few cell connectors
Lower weight
Quick assembly
High safety and durability
High reliability

200A high-load power battery management system (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.

Important functions of the BMS:

Overload protection
Deep discharge protection
&overvoltage protection
Active cell balancing
Complete charge control
Multi-Charge-Mode (MCM)
Temperature protection of the BMS
Short-circuit protection

Smart measurement shunt
The smart measurement shunt is a battery monitor. It measures battery voltage and current. Based on these measurements, it calculates the state of charge, the remaining runtime and tracks historical data, such as the deepest discharge, the average discharge and the number of cycles. The Smart Measuring Shunt connects to the VictronConnect APP via Bluetooth. This is used to read out all monitored battery parameters and is also used to make or change settings.

The most accurate charge status display
One display for multiple batteries
Can be switched off
No power consumption during winter storage

Protection class IP67
The casing of the premium battery is fully bonded to allow flexible use even in damp or wet conditions.

Best warranty handling 8-year warranty
FORSTER INDIVIDUAL BATTERIES grants an 8-year guarantee on its batteries. Even after the warranty period, our service is there for you and can check and repair your battery. Thanks to our modular design and the use of large cells, this can be done easily, quickly and cost-effectively.

8 years manufacturer's warranty
Fast warranty processing
Fast and efficient
Value for money even after the warranty period

Technical data

Data / order no.:	F12-100XB2
EAN	4251847300716
Capacity	100Ah
Replaces lead-gel AGM battery	12V/200Ah
Nominal voltage	12.8V
Energy content	1280Wh
Operating voltage	10.5V - 14.6V
Application parallel circuit	Yes, any number of the same type possible in parallel!
Application series connection	Yes, serial up to 24V, 36V and maximum 48V possible!
Cell technology	Lithium LiFePO4
Cell type	BPC Big-Prismatic-Power high-load cells- GradeAA
Charging programs	CCCV / IU / IUoU / Lead-Säure
Final charge voltage	14.2V - 14.6V
Maintaining charge	13.3 - 13.8V
Maximum charging current	100A
Recommended charging current	50A
Max. discharge current / 5 sec.	400A
Continuous discharge current	200A
Battery shutdown	10.5V
BMS Battery Management System	integrated
Remote monitoring	Integrated 500A Bluetooth measuring shunt with free APP
Protection class	IP67
Cycles / service life at 50% DoD	>8000
Cycles / service life at 80% DoD	>6000
Cycles / lifetime at 90% DoD	>5000
Temperature during charging	0°C to +60°C / below 0°C the charging current is automatically reduced by "Cell-Frost-Control" in the BMS
Temporary repair during discharge	-20°C to +60°C
Recommended storage temperature	-10°C to 30°C
Storage	80 - 100% charged / when not in use, charge battery every 6 months
Self-discharge	1 - 2% / month
Connection	Car cone
Plus pole arrangement	front right
End pole type	Pole
Preparation for shunt assembly	n/a
Emergency stop switch built in	n/a
Length	355mm
Width	175mm
Höhe	190mm
Installation position	any, upright, horizontal, sideways, upright, upside down
CANbus interface	n/a
Weight	11kg
Guarantee	8 years
Certification	UN38.3 \| MSDS \| CE \| RoHS

Shipping weight:

12,00 kg
Item weight:

11,00 kg
