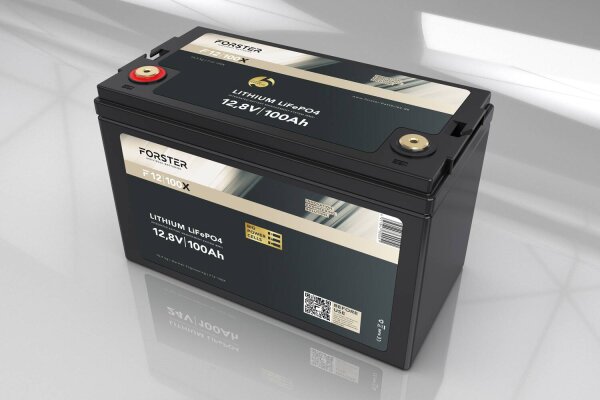

FORSTER 100Ah 12.8V LiFePO4 Premium Lithium Battery | 200A-BMS-2.1 | IP67

SKU: F12-100X
GTIN: 4251847300051
Manufacturers: FORSTER INDIVIDUAL BATTERIES

844,20 €

Incl. 0% VAT for orders according to §12 Abs. 3 UStG, only for DE

1.004,60 €

incl. 19% VAT

plus (Applies to both prices)

Manufacturers recommended retail price: 1.090,00 €

(Save 7.83%, i.e. 85,40 €)

Choose tax zone / country of delivery

Available immediately
Ships in 2 - 5 business days (Mon-Fri)

Arrange a consultation now

OR ORDER DIRECTLY

Now with an 8-year warranty!

Highest quality and reliability for almost all areas of application, whether caravan, marine or energy storage. The latest cell technology, optimized BMS 2.0 control and monitoring set the standard for maximum performance and service life. Optimum monitoring and control of measurement and consumption values possible via measurement shunt and Bluetooth.

TOP features

100% usable capacity
With our premium battery series, 100% of the specified capacity can be used without damaging the battery. Conventional lithium batteries can often only be discharged to 92-95%.

Multi-Charge-Mode (MCM)
With Multi-Charge-Mode (MCM), you can continue to use 99% of the devices such as boosters, shore chargers or solar regulators. This saves you additional costs and preserves the manufacturer's warranty for new vehicles.

Bluetooth measuring shunt
Optional all our X-series batteries are available with a 500A Bluetooth measuring shunt to display the really exact charge level via APP.

Built-in complete protection / safety ﬁrst
The integrated, intelligent battery management system (BMS) protects the battery and ensures completely safe use.

Big Power Prismatic Cells (BPC)
In contrast to conventional batteries, which consist of many small interconnected cells, FORSTER relies on a few, larger battery cells. The minus in complexity brings a plus in performance, service life and safety.

Maximum space utilization

Few cell connectors

Lower weight

Quick assembly

High safety and durability

High reliability

200A high-load power battery management system (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.

Important functions of the BMS:

Overload protection

Deep discharge protection

&overvoltage protection

Active cell balancing

Complete charge control

Multi-Charge-Mode (MCM)

Temperature protection of the BMS

Short-circuit protection

Protection class IP67
The casing of the premium battery is fully bonded to allow flexible use even in damp or wet conditions.

Best warranty processing 8-year warranty
FORSTER INDIVIDUAL BATTERIES grants an 8-year guarantee on its batteries. Even after the warranty period, our service is there for you and can check and repair your battery. Thanks to our modular design and the use of large cells, this can be done easily, quickly and cost-effectively.

8 years manufacturer's warranty

Fast warranty processing

Fast and efficient

Value for money even after the warranty period

Suitable pole adapters can be found here.

Technical data

Data / order no.: F12-100X

EAN 4251847300051

Capacity 100Ah

Replaces lead-gel AGM battery 12V/200Ah

Nominal voltage 12.8V

Energy content 1280Wh

Operating voltage 10.5V - 14.6V

Application parallel circuit Yes, any number of the same type possible in parallel!

Application series connection Yes, serial up to 24V, 36V and maximum 48V possible!

Cell technology Lithium LiFePO4

Cell type BPC Big-Prismatic-Power high-load cells- GradeAA

Charging programs CCCV / IU / IUoU / Lead-Säure

Final charge voltage 14.2V - 14.6V

Maintaining charge 13.3 - 13.8V

Maximum charging current 100A

Recommended charging current 50A

Max. discharge current / 5 sec. 400A

Continuous discharge current 200A

Battery shutdown 10.5V

BMS Battery Management System integrated

Remote monitoring optional Optionally available with 500A Bluetooth measuring shunt and free APP

Remote monitoring/measurement shunt integrated F12-100XB

Protection class IP67

Cycles / service life at 50% DoD >8000

Cycles / service life at 80% DoD >6000

Cycles / lifetime at 90% DoD >5000

Temperature during charging 0°C to +60°C / below 0°C the charging current is automatically reduced by "Cell-Frost-Control" in the BMS

Temporary repair during discharge -20°C to +60°C

Recommended storage temperature -10°C to 30°C

Storage 80 - 100% charged / when not in use, charge battery every 6 months

Self-discharge 1 - 2% / month

Connection M8

Plus pole arrangement front left

End pole type M8 internal thread

Preparation for shunt assembly n/a

Emergency stop switch built in n/a

Length 330mm

Width 170mm

Höhe 220mm

Installation position any, upright, horizontal, sideways, upright, upside down

CANbus interface n/a

Weight 10.9kg

Guarantee 8 years

Certification UN38.3 | MSDS | CE | RoHS

Shipping weight:

11,90 kg
Item weight:

10,90 kg
