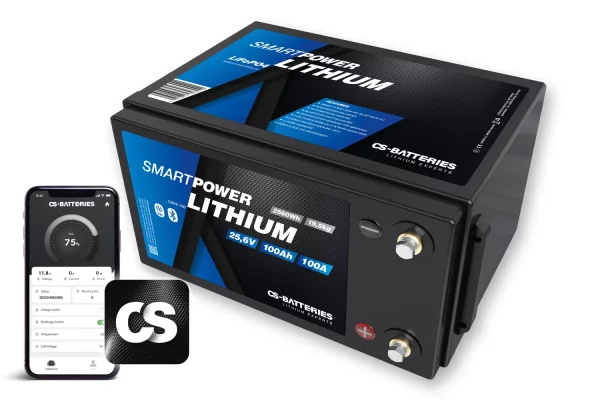

25.6V | 100Ah | SMART Power lithium battery | replaces 200Ah lead
Universal, strong, inexpensive
With our new 100Ah SMART Power battery High-quality 100Ah Prismatic LiFePO4 Smart cells, we offer you a LiFePo4 lithium supply battery with innovative frost protection management at a smart price. Developed and suitable for motorhomes, panel vans, caravans, boats, fishing or energy storage.
TOP FEATURES: High-quality 100Ah Prismatic LiFePO4 Smart cells SMART Power BMS-2.1 with Bluetooth 5.0 Integrated cell balancer Automatic cell heating Screwed housing for service 4 batteries can be connected in parallel and in series Charging and discharging down to -30°C On/off switch via app 5000 cycles Housing according to DIN standard
Power Battery Management System: The newly developed Power Battery Management System is based on the latest microcontroller technology. This monitors and protects your battery from damage in every application. The BMS is connected to each cell individually and monitors them permanently.
Frost protection management (FSM): The SMART Power supply battery has been optimized for cold applications with cell heating. The newly developed BMS ensures charging and discharging down to minus 30°C. The integrated temperature measurement in the BMS activates the automatic cell heating at cold temperatures. This ensures that the cells are heated evenly and gently before charging. Our new charging and discharging release via app control also helps you to ensure problem-free winter storage. Safe disconnection protects the battery from deep discharging, even during long downtimes.
CS-Batteries app: With the CS-Batteries app, you can access the battery management system installed in the battery directly via Bluetooth. This allows you to check the battery parameters and optimally plan your journey by displaying the remaining battery life. The data can be conveniently displayed via a smartphone or tablet (Android / IOS).
|
Data / Order no.:
|
CS24-100
|
|
EAN
|
425184730390
|
|
Capacity
|
100Ah
|
|
Replaces lead-gel AGM battery
|
200Ah
|
|
Nominal voltage
|
25.6V
|
|
Energy content
|
2560Wh
|
|
Operating voltage
|
22.0 - 29.2V
|
|
Application parallel circuit
|
Yes, max. 4 pieces of the same type!
|
|
Application of series switching
|
Yes, max. to 48V!
|
|
Cell technology
|
LiFePO4 / LFP
|
|
Cell type
|
Prismatic Smart Cells (PSC)
|
|
Charging programs
|
CC/CV | IU | IUoU | Lead-Säure
|
|
Final charge voltage
|
28.4 - 29.2V
|
|
Preservation charge
|
26.8V
|
|
Maximum charging current
|
50A
|
|
Standard charging current
|
20A
|
|
Max. discharge current / 3 sec.
|
200A
|
|
Continuous discharge current
|
100A
|
|
Battery shutdown
|
Yes, via Bluetooth / APP
|
|
BMS Battery Management System
|
integrated
|
|
Remote monitoring via Bluetooth APP
|
Yes, Bluetooth APP built in
|
|
Remote monitoring/measurement shunt integrated
|
no
|
|
Protection class
|
IP52
|
|
Cycles / service life at 50% DoD
|
5000
|
|
Cycles / service life at 80% DoD
|
3500
|
|
Cycles / service life at 90% DoD
|
3000
|
|
Temperature during charging
|
-30°C to +60°C
|
|
Temperature at discharge
|
-30°C to +60°C
|
|
Recommended storage temperature
|
-20°C to +60°C
|
|
Automatic cell heating
|
built in
|
|
Storage
|
80 - 100% charged / when not in use, charge battery every 6 months
|
|
Self-discharging
|
2-3% / month
|
|
Connection
|
M8 female thread
|
|
Plus pole arrangement
|
on the side or top
|
|
Maße (battery standing)
|
340 x 190 x 248 mm
|
|
Maße (battery lying)
|
340 x 248 x 190 mm
|
|
Installation position
|
any, standing, lying, upright
|
|
CANbus interface (removed)
|
no
|
|
Weight
|
19.5kg
|
|
Guarantee
|
5 years
|
|
Certification
|
UN38.3 | MSDS | CE | RoHS | ECE-R10 | E1
|
5-year warranty As a manufacturer, FORSTER INDIVIDUAL BATTERIES grants a 5-year warranty on the battery advertised with the warranty promise.
