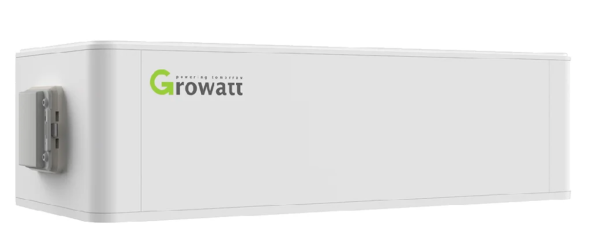

Growatt BDC 95045-A1 BMS Control Unit for MIN XH and MOD XH Inverters

SKU: BDC 95045-A1
GTIN: 6975609726757
Manufacturers: Growatt

RRP 998,41 €

571,87 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
(DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

Notify me when this item is available

E-Mail

The newGrowatt APX 98034-P2 Battery management system is a control unit of the latest generation that protects each APX battery module from adverse conditions and ensures safe and disruptive continuous operation. It does not matter how many modules are in operation at the same time. It is important that one BMS per tower is always used. A tower consists of at least 1 to a maximum of 6 Growatt APX 5.0P-B1 5KWH high-voltage battery modules, which can result in a storage capacity of 5-30 kWh.

Monitoring parameter
Soc
System voltage
System current
Cell tension
Cell temperature
PCBA temperature

The APX battery system:
Thanks to the modular concept, the APX system can be used flexibly and can be expanded if necessary. A battery tower can be built with at least one to a maximum of 6 memory modules. A performance module is required for operation per tower. This is separate for purchase. An additional base is required for soil mounting.

Technical specifications:
Dimensions: 690 x 185 x 295 mm
Weight: 15kg
Max. Electricity: 30A
Top current: 34a, 60s
Communication: RS485/Can

Scope of delivery:
1x Growatt APX 98034-P2 BMS

Shipping weight:

9,00 kg
Item weight:

8,00 kg
