40AH Lithium Mover Power Pack installation with charger
The Mover Power Pack Set solves its maneuvering problems and also supplies your caravan with electricity with self -sufficient use. The LIFEPO4 battery lithium provides the required high current for powerful maneuvering up to 60 minutes. They also have a safe supply function for lighting and inverters up to 1000W.
Top features:
- Light weight, super light
- Very high security
- 100% maintenance -free
- Replaces an 80Ah lead / gel / AGM battery
- Persistent shunting operation
- Additional power supply
- More than 10 years of service life
- Complete set
The Lithium Power Pack Set is the ideal power supply for your caravan with enormous weight savings. We also offer 3 different batteries to choose from, 20Ah, 40AH and 60AH. The larger the battery, the longer you can stand self -sufficient, the maneuvering performance is not affected.
More features:
- Lithium battery with battery management system
- Deep discharge
- Short -circuit -resistant / spotty -proof
- Cell balancing
- Load monitoring by frost-cell control
- Overload
- No risk of fire and explosion
- Fixed assembly, no expansion for wintering necessary
- 6 months off-line warehouse time
- Inclusive battery charging cable
- Inclusive main switch
- Including fast pole terminals
Application
The sets consists of a lithium iron phosphate battery with suitable lithium charger, charging cable, dividing switch and fast-moving clamps. The system can be loaded via a power connection at the campsite. The lithium charger automatically switches off after full charging without further charging maintenance. If you want a charge while driving, the battery can connect to your motorhome charging system. It is also possible that the battery is connected to a solar controller.
Security
The battery cells are completely protected by the battery management system (BMS) built into the battery. This does not make the feared deep discharge.
Connections:
MOVER TO PLATION THE MOVER with 750a peak electricity
Motor vehicle connection for electrical system with max. 100A permanent current
Motor vehicle connection for inverter with max. 100A permanent current / 750a peak
Charging cable with a spotted XT60 plug
Application for the following maneuvering systems possible:
Truma Mover SX, Truma Mover XT, Truma Mover XT2, Truma Mover XT4
Al-Ko Mammut 115/220, Ranger 115/226, Mammut M20
Rich Easydriver pro and active
Sanding aid GO2
service
The system works automatically and does not have to be activated. The XF3 lithium charger loads the battery to 14.6V and switches on automatically when energy is removed from the battery. For wintering, we recommend disconnecting the vehicle clamps for a standing time up to 6 months without any charge.
Bluetooth
Our batteries deliberately do not offer a Bluetooth interface. In order to avoid a long lifespan and an empty of the battery by small but constant consumers, we do not install a Bluetooth. The system works perfectly and is safely loaded by the supplied charger at the campsite. A status indicator is not precise with lithium batteries via Bluetoots without a measurement shunt, since the voltage drop as is not the case with the old lead technology. For a really accurate level indicator, we therefore recommend installing a measuring shunt with 100A.

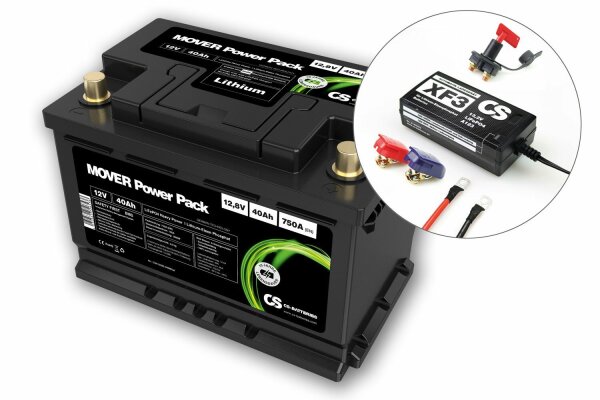

Scope of delivery / The set consists of:
1 x lithium lifepo4 Power Pack 40AH / PB-EQ 80AH
1 x lithium lifepo4 charger with a mains connection cable
1 x charging cable
2 x quick pole terminals for plus and minus pole
1 x main switch
1 x installation instructions
Certificates:
CE: General operational safety
Unt38.3: Certified transport security in traffic
Rohs: Certified material security
Warranty: 2 years
Technical specifications:
Model: CSX12080-040MSet
Type:Mover battery
Nominal capacity: 40Ah
Energy content: 480Wh
Cell technology: Lithium-iron nanophosphate lifepo4
Cell type: A123 Systems
Replaces one: 80Ah lead-gel-agm battery
Application: 12V maneuvering systems, power supply, short -term high -flow laserations
Application in parallel circuit: No
Application Series circuit: No
Operating voltage: 10.5 - 14.6V
Nominal voltage: 13.2V
Lifespan: => 10 years
Cycling time at 80% DOD: = 3000
Cycling time at 50% DOD: = 5000
Loading programs: CCCV
Load closing voltage: 14.6V
Maximum charging current: 40A
Permanent enthusiasm: 100a
Peak enthusiast (1 sec.): 750a (s)
Permanent inverter: 100a
Maximum inver power: 750a
Discharge tension: 10.5V
Temperature range (discharge): -20 ° C to +65 ° C
Temperature range (charge): 0 ° C to +50 ° C (BMS controlled)
Temperature range (storage): -20 ° C to +65 ° C
Battery management system (BMS): Yes, installed
Connection solar controller: Yes / 12-14.6V
Balancer: Yes, active balancer
Self -discharge: 1-2% / month
Installation position: any
Connection: Standard vehicle pole terminal / polar order 0
Weight: 4.2kg (set)
Dimensions (BXTXH): 279 x 175 x 189 mm
Light, strong, mobile, self -sufficient and safe!
