Now with a 7-year manufacturer's warranty!
New 200Ah lithium battery as a fully-fledged lead battery replacement for your under-seat battery in your Ducato, Transit or PSE motorhome
This 200Ah lithium LiFePO4 battery is specially designed for motorhomes and for installation under the passenger seat. Many popular motorhomes such as the Fiat Ducato, Citroen Jumper or Peugeot require an extra-flat lithium battery for installation under the passenger seat. Depending on the seat console, 1-2 batteries can be mounted one behind the other. With the new lithium-iron technology, you can replace your previous lead-gel or AGM battery quickly and easily for the first time.
Maximum capacity under the seat!
The ultra-light DeepC-Power battery can be used purely as a supply battery and can be loaded up to 200A continuously or 400A for short periods. The significantly lower weight, long operational reliability, long service life and long service life are decisive advantages compared to conventional old technology batteries.
Double the capacity in the same space
60% less weight
Longer service life
2500W inverter power
Features:
-
High-current resistant, ideal for heavy-duty applications such as air conditioning, coffee machines, refrigerators, etc.
-
Replaces a 400Ah lead-acid battery
-
Built-in 200A power BMS
-
Very low weight
-
Fast charging
-
High intrinsic safety
-
Temperature-stable
-
Frost-Cell-Control
-
¨over 3000 cycles at 90% discharge
-
Lifespan up to 10 - 20 years
-
100% maintenance-free
-
Environmentally friendly, no lead, no acid
-
Recyclable!
-
7 years manufacturer's warranty
Of the family of lithium-ion battery types, the lithium iron phosphate battery (LiFePO4) is the safest. It is high-current resistant, can be used universally and is lighter than lead, gel or AGM batteries. In addition, the latest lithium-iron technology offers a high degree of intrinsic safety, so that there is no risk of explosion even under the most extreme conditions. A 12.8V LiFePO4 battery consists of 4 individual cells connected in series, each with a nominal voltage of 3.2V. A built-in battery management system (BMS) also protects the battery cells from damage.
Advantages of our LiFePO4 DeepC-Power battery compared to lead batteries:
-
High discharge rates up to the specified capacity possible
-
Due to the up to 60% lower weight, more payload is possible
-
Due to the smaller space requirement, more capacity can be carried in the same space
-
Up to 10 times longer service life thanks to the high number of cycles of LiFePO4 technology
-
Extremely fast charging of the cells is possible
-
Complete discharge of the specified nominal capacity possible
-
The battery is protected by a battery management system (BMS)
-
The charging in the motorhome takes place via common lead or acid chargers with a final charging voltage of 14.6V
-
The battery is winter-proof and does not need to be removed down to -20° C
-
Delivered fully charged, install and drive off
-
No modification to the motorhome or additional electronics is required to use the battery
-
Due to the low self-discharge, a sealed battery can be stored for up to 6 months without any problems
-
For more capacity, you can connect any number of batteries in parallel
Battery Management System (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.
Important functions of a battery management system:
-
&overload protection
-
Deep discharge protection
-
&overvoltage protection
-
Active cell balancing
-
Load monitoring and control
-
Temperature protection of the cells
-
Temperature protection of the BMS
-
Automatic intelligent charge control from 0°C cell temperature
-
Short-circuit protection
Battery status display:

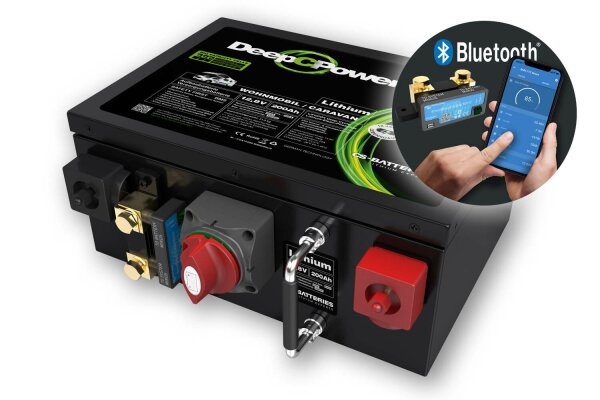

The state of charge and the consumption values are measured by an included 500A measuring shunt and displayed via a Bluetooth connection in the free Victron APP on the tablet or cell phone.
You can find the right connection cable for the measuring shunt here and an automotive cone here.
Hereyou can find the pole adapters.
Certificates:
CE:General operational safety
UN38.3:Proven transport safety in traffic
RoHS: Tested material safety
WARRANTY: 7-year manufacturer's warranty
Technical data:
Model: CSX12200-BMS200CS
Type: supply battery
Nominal capacityät: 200Ah
Energy content: 2560 Wh
Cell technology: Lithium iron nanophosphate LiFePO4
Cell type: Big-Capacity-PrismaticCells (BCC)
Replaces one: 400Ah lead-gel battery
Application: 12V installations, RV, solar
Application Parallel circuit: Yes, any number of the same type possible
Application series switching: No, Yes, up to 48V
Operating voltage: 10.5 - 14.6V
Nominal voltage: 12.8V
Lifespan: = 10 years
Cycle duration at 50% DoD: = 5000
Cycle duration at 80% DoD: = 3500
Cycle duration at 90% DoD: = 3000
Charging programs: CCCV / IU / IUoU
Final charge voltage: 14.6V
Maximum charging current: 200A / 1C
Standard charging current: 100A / 0.5C
Charging current for max. Service life: 66A / 0.33C
Continuous discharge current: 200A
Peak discharge current (3-5 sec.): 400A
Maximum inverter power: up to 5000W
Discharge voltage: 10.5V
Temperature range (discharge): -20°C to +65°C
Temperature range (charge): 0°C to +65°C / from 0°C reduced charging power
Temperature range (storage): -20°C to -60°C
Battery Management System (BMS): Yes, installed
Balancer: Yes, active balancer
Self-discharge: 1-2% / month
Installation position: Installation position any!
Connection:M8 screw with protective cap, (automotive cone optional Order no.-No. CS100161)
Status display: With 500A measuring shunt üvia Bluetooth APP on tablet or mobile phone
Protection class: IP54
Weight: 21.5kg
Dimensions complete with pole (WxDxH): 360 x 327 x 160 mm
Dimensional dimensions (WxDxH): 360 x 327 x 160 mm?
Manufacturer's warranty: 7 years
Recommendation für:
Motorhome under-seat installation
Powerful consumers such as air conditioning, coffee machine, fön etc.
Scope of delivery:
1 x LiFePO4 DeepC-Power battery
1 x user manual
Super capacity under the seat, mega weight saving, reliability and long service life!
