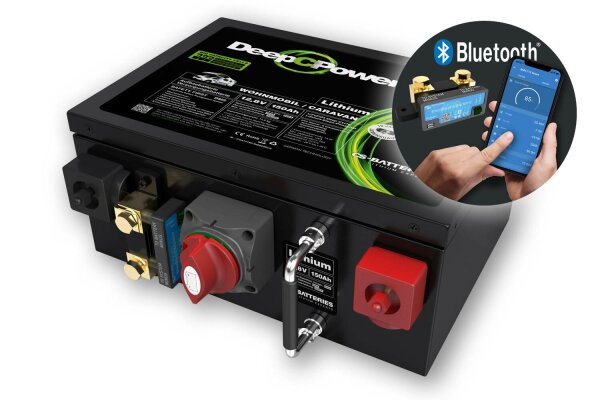

CS 150Ah 12.8V Lithium LiFePO4 -Caravan/RV, integrated 500A Bluetooth measuring shunt
Ducato under seat | 360 x 327 x 160mm | ~17.33kg | replaces a 300Ah lead gel battery
150Ah Lithium battery as a full lead battery replacement for your under seat battery in the Ducato, Transit or PSE motorhome
This 150Ah lithium LiFePO4 battery is specially designed for motorhomes and for installation under the passenger seat. Many popular motorhomes such as the Fiat Ducato, Citroen Jumper or Peugeot require an extra-flat lithium battery for installation under the front passenger seat. Depending on the seat console, 1-2 batteries can be mounted one behind the other. With the new lithium-iron technology, you can replace your previous lead-gel or AGM battery quickly and easily for the first time.
Maximum capacity under the seat!
The ultra-light DeepC-Power battery can be used purely as a supply battery and can be charged up to 200A continuously or 400A for short periods. The significantly lower weight, long operational reliability, long service life and long service life are decisive advantages over conventional batteries with older technology.
Double the capacity in the same space
60% less weight
Longer service life
2500W inverter power
Features:
High-current resistant, ideal for powerful applications such as air conditioning, coffee machines, refrigerators, etc.
Replaces a 300Ah lead-acid battery
Includes 500A Bluetooth measuring shunt
Built-in 200A power BMS
Very low weight
Fast charging capability
High intrinsic safety
Temperature stable
Frost-Cell-Control
¨over 3000 cycles at 90% discharge
Lifespan up to 10 - 20 years
100% maintenance-free
Environmentally friendly, no lead, no acid, recyclable!
7 years manufacturer's warranty
The lithium iron phosphate battery (LiFePO4) is the safest of the lithium-ion battery family. It is highly current-resistant, can be used universally and is lighter than lead, gel or AGM batteries. In addition, the latest lithium-iron technology offers a high degree of intrinsic safety, so that there is no risk of explosion even under the most extreme conditions. A 12.8V LiFePO4 battery consists of 4 individual cells connected in series, each with a nominal voltage of 3.2V. A built-in battery management system (BMS) also protects the battery cells from damage.
Advantages of our LiFePO4 DeepC-Power battery compared to lead batteries:
High discharge rates up to the specified capacity possible
Due to the up to 60% lower weight, more payload is possible
Due to the lower space requirement, more capacity can be carried in the same space
Up to 10 times longer service life due to the high cycle life;The battery is protected by a battery management system (BMS)
Charging in the motorhome is carried out by means of a battery management system (BMS);via common lead or acid chargers with a final charging voltage of 14.6V
The battery is winter-proof and does not need to be removed down to -20° C
It is delivered fully charged, install and drive off
No modifications to the motorhome or accessories are required to use the battery;modification to the motorhome or additional electronics is required
Due to the low self-discharge, a sealed battery can be stored for up to 6 months without any problems
For more capacity, you can connect any number of batteries in parallel
Battery Management System (BMS)
A battery management system monitors and controls the individual cells of a battery and protects them from damage.
Important functions of a battery management system:
Overload protection
Deep discharge protection
Overvoltage protection
Active cell balancing
Charge monitoring and control
Temperature protection of the cells
Temperature protection of the BMS
Automatic intelligent charge control from 0°C cell temperature
Short-circuit protection
Battery status indicator with 500A Bluetooth measuring shunt:
The Smart Shunt is a battery monitor. It measures battery voltage and current. Based on these measurements, it calculates the state of charge, the remaining runtime and tracks historical data, such as the deepest discharge, the average discharge and the number of cycles. The smart shunt connects to the Victron Connect app via Bluetooth. The Victron Connect app is used to read out all monitored battery parameters and is also used to make or change settings.
Certificates:
CE: General operating safety
UN38.3: Tested transport safety in traffic
RoHS: Tested material safety
WARRANTY: 7 year manufacturer's warranty
Technical data:
Model: CSX12150-BMS200CSBS
Type: Supply battery
Nominal capacity: 150Ah
Energy content: 1920 Wh
Cell technology: lithium iron nanophosphate LiFePO4
Cell type: big-capacity PrismaticCells (BCC)
Replaces a: 300Ah lead-gel battery
Application: 12V installations, RV, solar
Application Parallel connection: yes, any number of the same type possible
Application Series connection: no, not possible
Operating voltage: 10.0 - 14.4V
Nominal voltage: 12.8V
Life time: = 10 years
Cycle time at 50% DoD: = 8000
Cycle time at 80% DoD: = 6000
Cycle time at 90% DoD: = 5000
Charging programs: CCCV / IU / IUoU
Final charge voltage: 14.6V
Maximum charge current: 180A / 1C
Standard charge current: 90A / 0.5C
Continuous discharge current: 250A
Peak discharge current (3-5 sec): 600A
Maximum inverter power: up to 3000W
End-of-discharge voltage: 10.0V
Temperature range (discharge): -20°C to +65°C /max 300A
Temperature range (charging): 0°C to +55°C
Temperature range (storage): -20°C to -60°C
Battery management system (BMS): yes, built-in
Balancer: yes, active balancer#Self-discharge: 1-2% / month
Installation position: any installation position!
Connection:M8 screw with protective cap, (car cone)
Status display:via button and LED on the front flap
Interface: RS485 / RJ45 / LCD display
Protection class: IP54
Weight: 17.33kg
Dimensions e (WxDxH): 360 x 327 x 160 mm
Recommendation für: Motorhomes under-seat installation, Powerful consumers such as air conditioning, coffee machine, fön etc.
Scope of delivery:
1 x LiFePO4 DeepC-Power battery
1 x operating instructions
