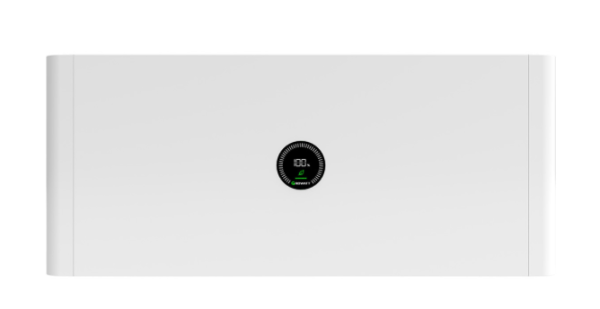

Growatt APX 98020-P1 Performance Module BMS

SKU: APX 98020-P1
GTIN: 4262440566621
Manufacturers: Growatt

276,47 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

(Save 75.54%, i.e. 853,91 €)

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Currently out of stock
Shipping in 1-3 business days (DE - int. shipments may differ)

Arrange a consultation now

OR ORDER DIRECTLY

Notify me when this item is available

E-Mail

The newGrowatt APX 98020-P1 battery management system is a control unit of the latest generation that protects each APX battery module from adverse conditions and ensures safe and trouble-free continuous operation. It does not matter how many modules are in operation at the same time. It is important that one BMS per tower is always used. A tower consists of at least 1 to a maximum of 6 Growatt APX 5.0P-B1 5KWH high-voltage battery modules, which can result in a storage capacity of 5-30 kWh.

Monitoring parameters:
SOC, system voltage, system current, cell voltage, cell temperature, PCBA temperature

APX battery system
Thanks to the modular concept, the APX system can be used flexibly and can be expanded if necessary. A battery tower can be built with at least one to a maximum of 6 memory modules. A performance module is required for operation per tower. This is separate for purchase. An additional base is required for soil mounting.

Technical specifications:
Dimensions: 690 x 185 x 295 mm
Weight: 15kg
Max. Electricity: 21a
Top current: 27a, 60s
Communication: RS485/Can

Scope of delivery:
1x Growatt APX 98020-P1 BMS

Shipping weight:

16,00 kg
Item weight:

15,00 kg

Manufacturer
Name: Growatt
Street: Max-Planck-Str. 36
ZIP-Code, City: 61381 Baden-Württemberg Friedrichsdorf
Email: support.pps@growatt.com

There are no reviews yet.
